Home >> Suzuki >> 2012 >> Equator Base >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical - Qr25DE >> Repair Instructions >> Timing Chain: Exploded View

Timing Chain: Exploded View

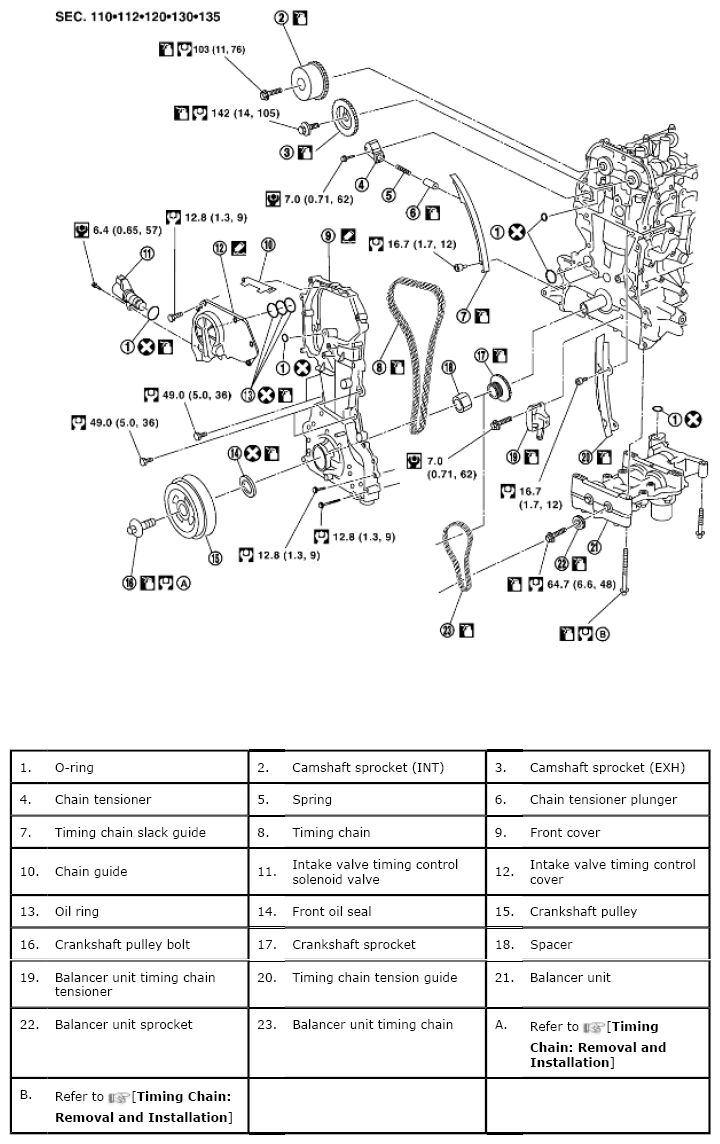

Fig 1: Exploded View Of Timing Chain

G06440697

Courtesy of SUZUKI OF AMERICA CORP.
