Engine Unit: Exploded View
Engine Unit: Exploded View

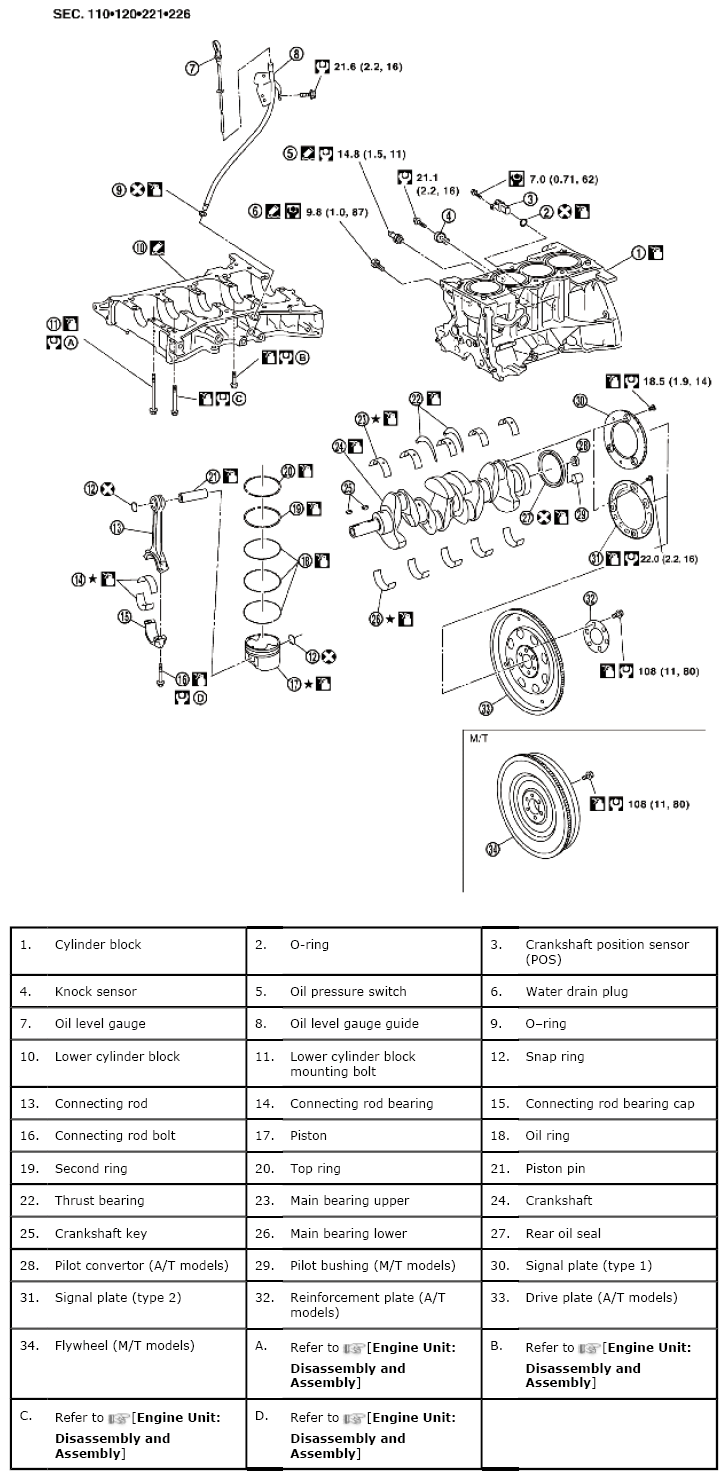

Fig 1: Exploded View Of Engine Unit
Courtesy of SUZUKI OF AMERICA CORP.

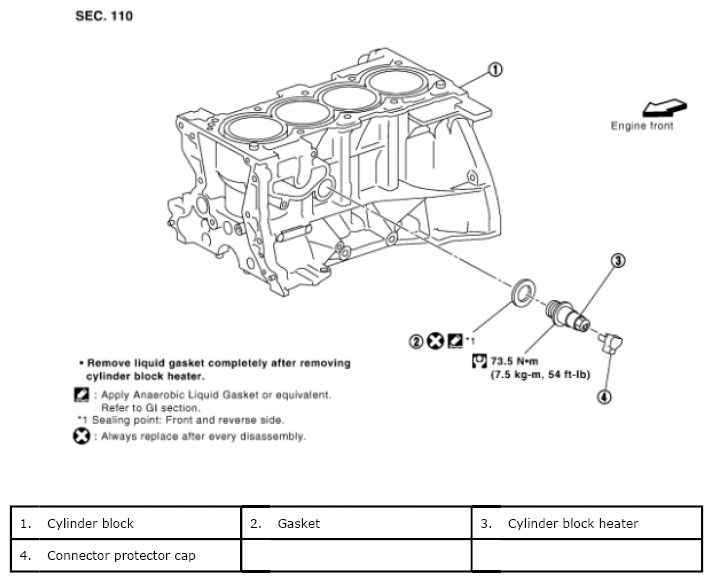

Fig 2: Exploded View Of Cylinder Block Heater (Canada Only)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
