Starting System: System Diagram [M/T without Clutch Interlock Cancel System]

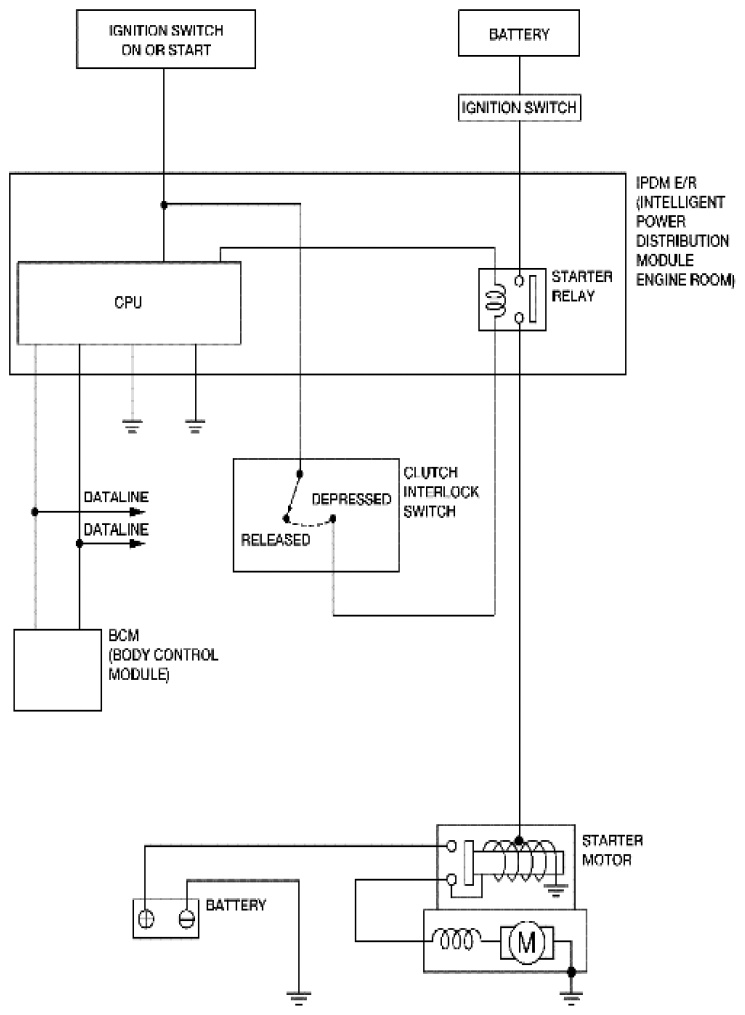

Fig 1: Starting System Diagram [M/T Without Clutch Interlock Cancel System]

G06444609

Courtesy of SUZUKI OF AMERICA CORP.
