Brake Pedal: Exploded View
Brake Pedal: Exploded View

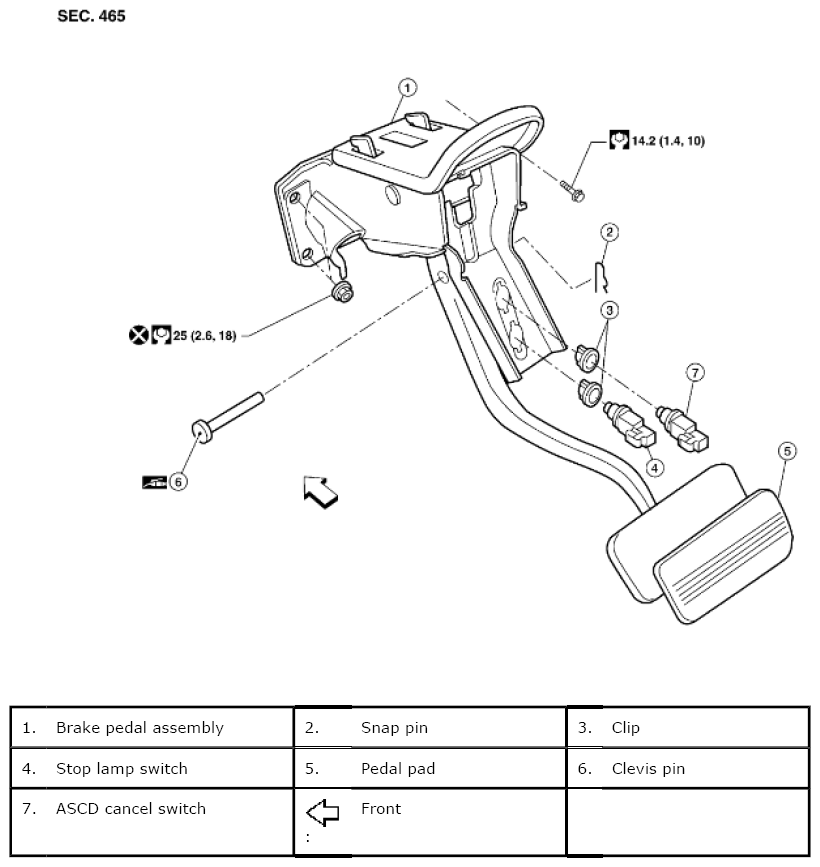

Fig 1: Exploded View Of Brake Pedal With Torque Specification
Courtesy of SUZUKI OF AMERICA CORP.
NOTE:
The clevis pin may be installed from either direction.
