Inside Mirror: Removal and Installation: Removal

  1. Remove the screw and the mirror finisher (if equipped).
  2. Slide the mirror upward to remove.
  3. Disconnect the connector (if equipped).

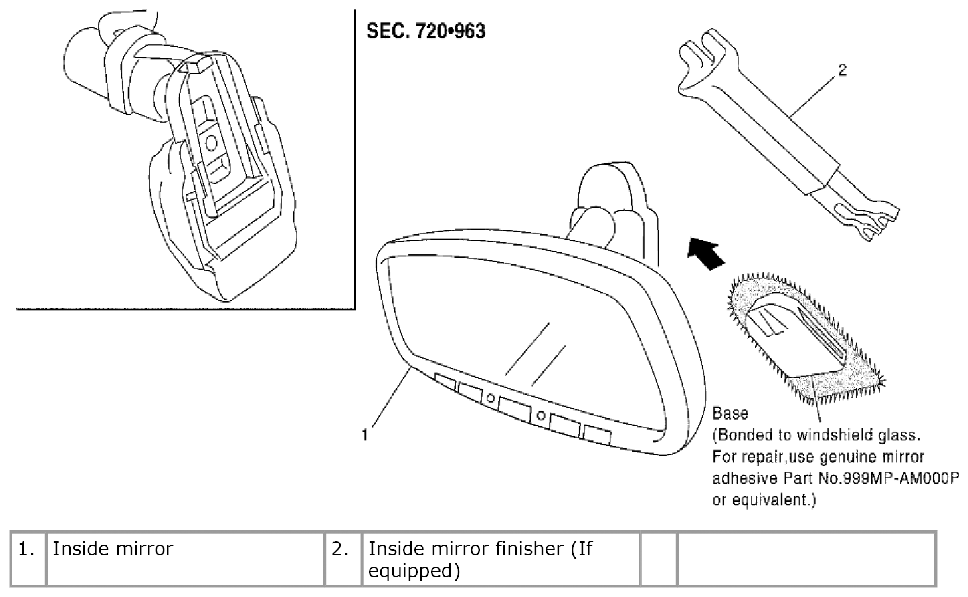

    Fig 1: Identifying Inside Mirror With Finisher
    G06443683Courtesy of SUZUKI OF AMERICA CORP.
