Washer Level Switch: Removal and Installation

  1. Remove washer fluid reservoir. Refer to [WASHER FLUID RESERVOIR: ON-VEHICLE REPAIR ].
  2. Lift level sensor out of washer fluid reservoir in the direction of the arrow as shown.

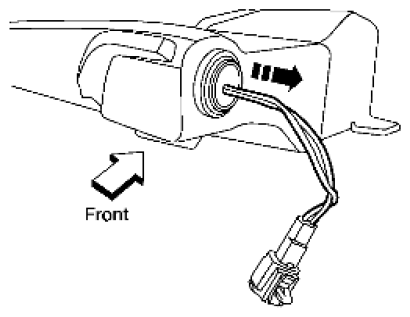

    Fig 1: Lifting Level Sensor Out Of Washer Fluid Reservoir
    G06446884Courtesy of SUZUKI OF AMERICA CORP.
