Front Wiper and Washer System: System Diagram

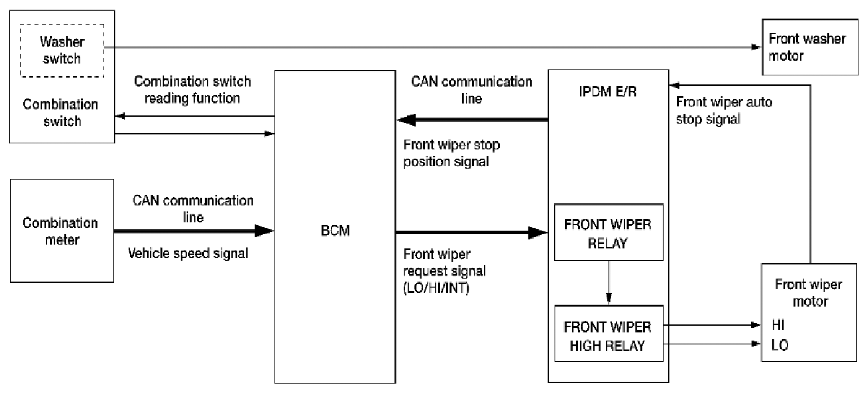

Fig 1: Front Wiper And Washer System Diagram

G06446855

Courtesy of SUZUKI OF AMERICA CORP.
