Front Wiper Int Operation (Linked With Vehicle Speed)
- BCM transmits the front wiper request signal (INT) to IPDM E/R with CAN communication according to the front wiper INT operation condition and the intermittent operation delay interval judged value.
Front wiper INT operating condition
- Ignition switch ON
- Front wiper switch INT
Intermittent operation delay interval judgment
- BCM calculates the intermittent operation delay interval from the vehicle speed signal received from the wiper dial position and the combination meter with CAN communication.
WIPER INTERMITTENT DIAL POSITION CHARTWiper intermittent dial position Intermittent operation interval Intermittent operation delay Interval (s) Vehicle speed Vehicle stopped or less than 5 km/h (3.1 MPH) 5 km/h (3.1 MPH) or more or less than 35 km/h (21.7 MPH) 35 km/h (21.7 MPH) or more or less than 65 km/h (40.4 MPH) 65 km/h (40.4 MPH) or more 1 Short
↑
↓
Long0.8 0.6 0.4 0.24 2 4 3 2 1.2 3 10 7.5 5 3 4 16 12 8 4.8 5 24 18 12 7.2 6 32 24 16 9.6 7 42 31.5 21 12.6 - IPDM E/R turns the integrated front wiper relay ON so that the front wiper is operated only once according to the front wiper request signal (INT).

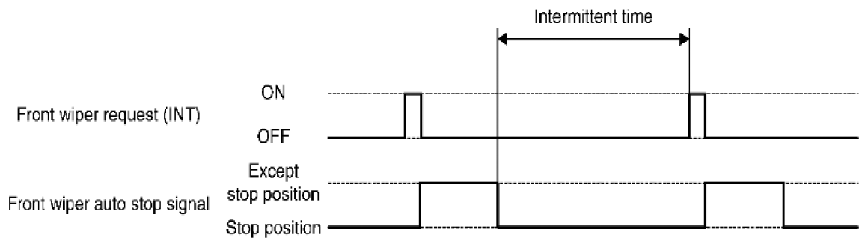

- BCM detects stop position/except stop position of the front wiper motor according to the front wiper stop position signal received from IPDM E/R with CAN communication.
- BCM transmits the front wiper request signal (INT) again after the intermittent operation delay interval after the front wiper motor is stopped.
