Washer Switch Circuit Check: Description

Washer switch is integrated with combination switch.

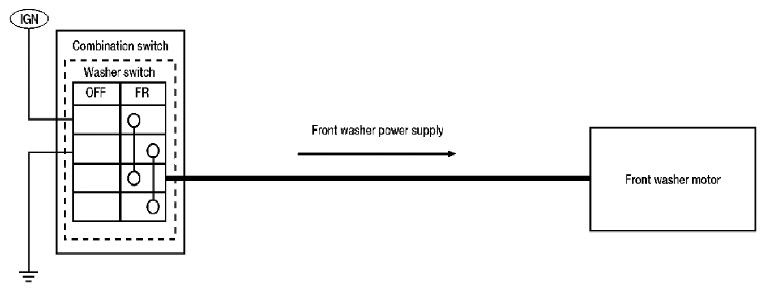

Fig 1: Washer Switch Communication Diagram

G06446868

Courtesy of SUZUKI OF AMERICA CORP.
