Component Inspection

COMPONENT DESCRIPTION

Step Action YES NO
1  CHECK FRONT WASHER SWITCH
  1. Turn the ignition switch OFF.

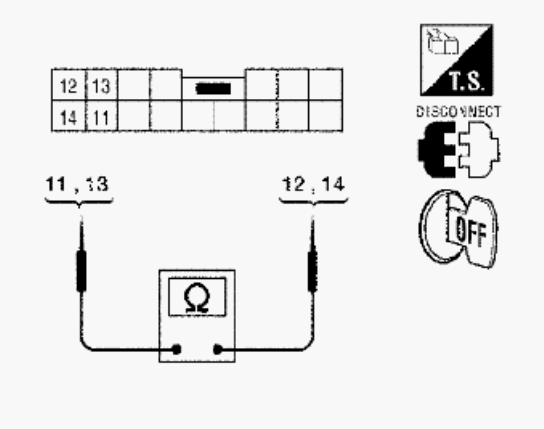

G00518856G06446870Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.

  1. 2. Disconnect combination switch (wiper and washer switch).
  2. 3. Check continuity between the combination switch (wiper and washer switch) terminals.
    1. Terminal 14
    2. Terminal 12
    3. Terminal 13
    4. Terminal 11
G00518856G06446870Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.

Does continuity exist? 		 Wiper and washer switch is normal. Replace combination switch (wiper and washer switch). Refer to [Wiper and Washer Switch: Removal and Installation ].
