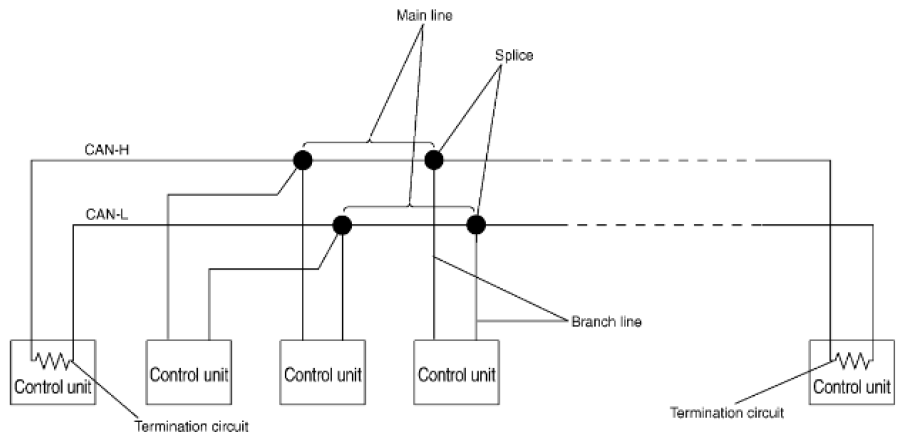

CAN Communication System: System Diagram
Each control unit passes an electric current to the termination circuits when transmitting CAN communication signal. The termination circuits produce an electrical potential difference between CAN-H and CAN-L. CAN communication system transmits and receives CAN communication signals by the potential difference.
COMPONENT DESCRIPTION
| Component | Description |
|---|---|
| Main line | CAN communication line between splices |
| Branch line | CAN communication line between splice and a control unit |
| Splice | A point connecting a branch line with a main line |
| Termination circuit | Refer to [CAN COMMUNICATION CONTROL CIRCUIT ]. |
