Vehicle Security System: System Diagram

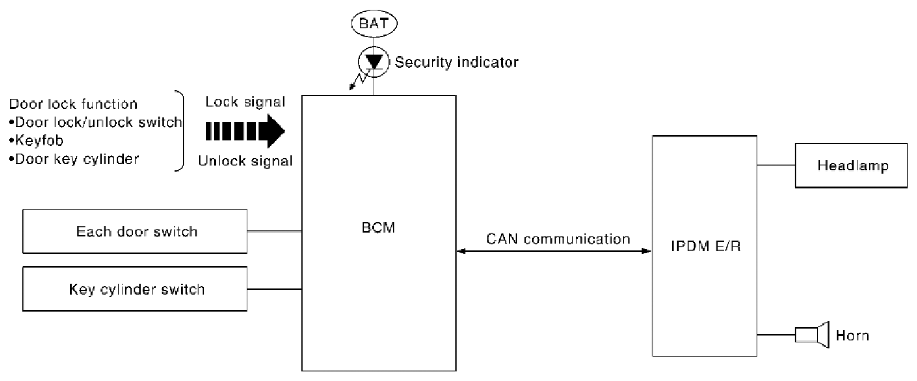

Fig 1: Vehicle Security System - System Diagram

G06446740

Courtesy of SUZUKI OF AMERICA CORP.
