Not Using SUZUKI Scan Tool

  1. Set steering wheel in straight-ahead position.
  2. Confirm that battery terminals and/or related fuses securely installed (if removed).
  3. Start engine.
    NOTE: When power is not supplied to the steering angle sensor by removing battery or fuse, DTC C1075 is detected and SLIP indicator light (1) flashes.
    If DTC other than C1075 is detected, SLIP indicator light flushes and other indicator illuminate. In that case, repair the detected DTC first.

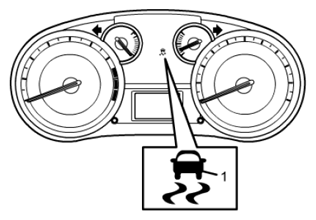

    Fig 1: Identifying SLIP Indicator Light
    G06866702Courtesy of SUZUKI OF AMERICA CORP.
  4. Drive straight for approximately 35 km/h (21.8 mile/h) or more and 10 seconds or more.
