Starting Motor Inspection: Gears

Check internal gear and planetary gears for wear, damage or other abnormal conditions. Replace gear set if necessary.

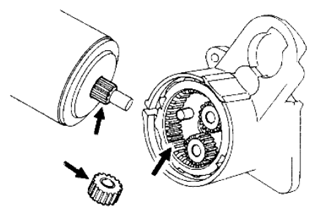

Fig 1: Locating Internal Gear And Planetary Gears

Courtesy of SUZUKI OF AMERICA CORP.
