Rear Seat Components
>>
Sedan Model
Sedan Model

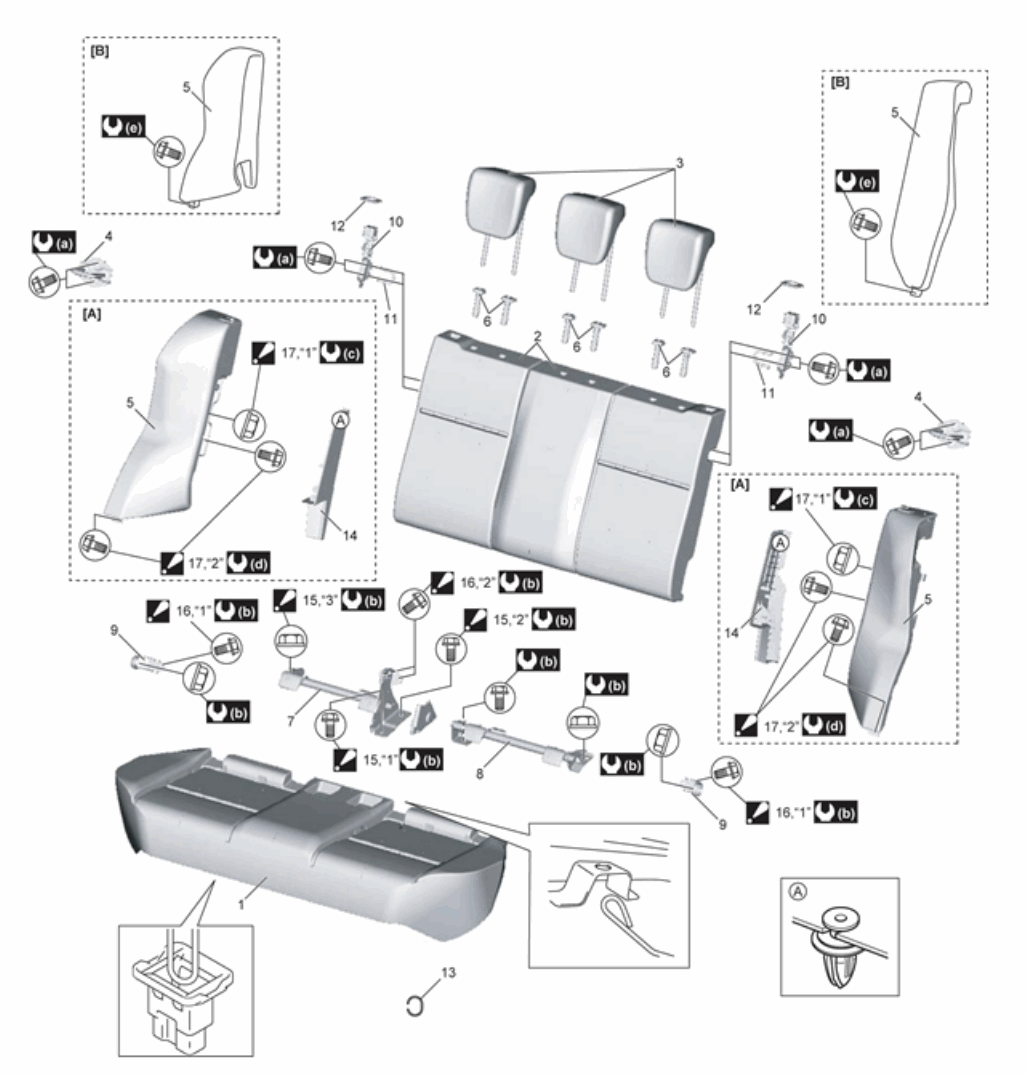

Fig 1: Rear Seat Replacement Components - Sedan Model With Torque Specifications (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

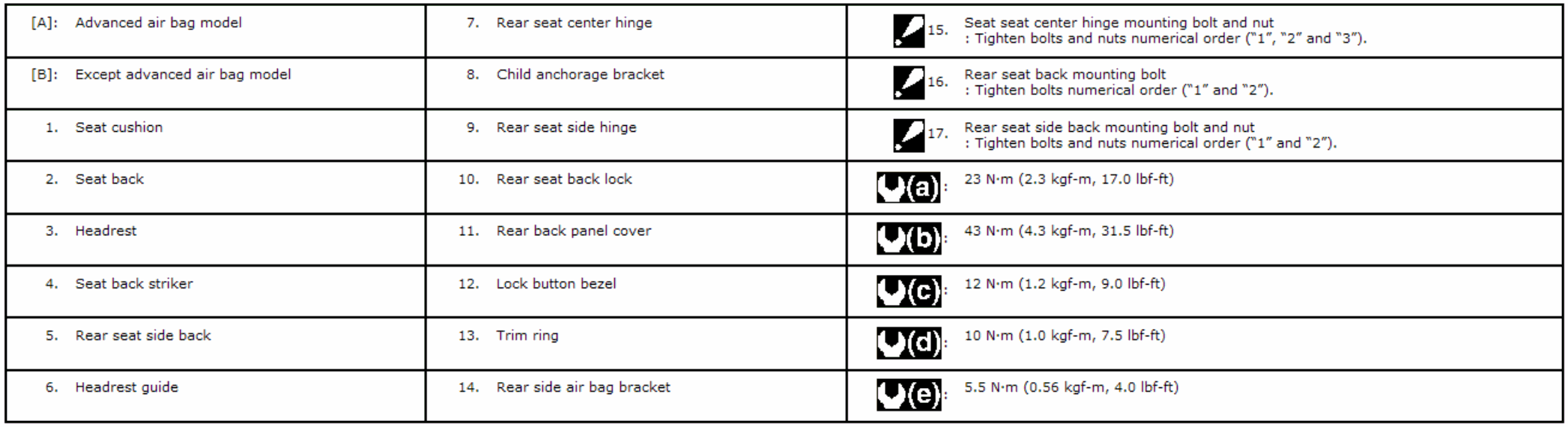

Fig 2: Rear Seat Replacement Components - Sedan Model With Torque Specifications (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
