Hatchback Model

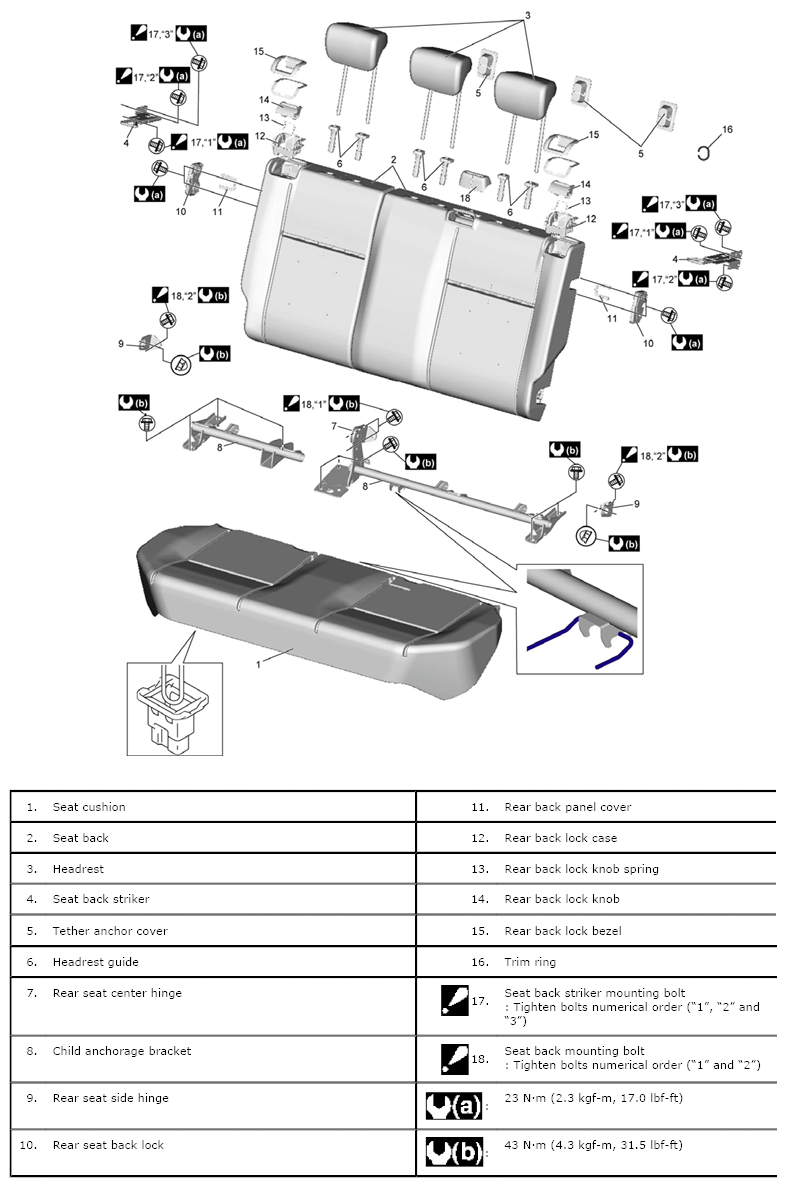

Fig 1: Rear Seat Replacement Components - Hatchback Model With Torque Specifications

G06868924

Courtesy of SUZUKI OF AMERICA CORP.
