Cruise Control System Input/Output Diagram

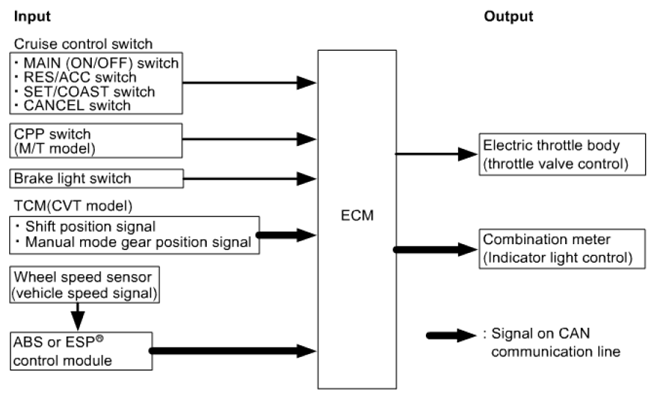

Fig 1: Cruise Control System Input/Output Diagram

G06869217

Courtesy of SUZUKI OF AMERICA CORP.
