Engine Control System Circuit Diagram: Notes

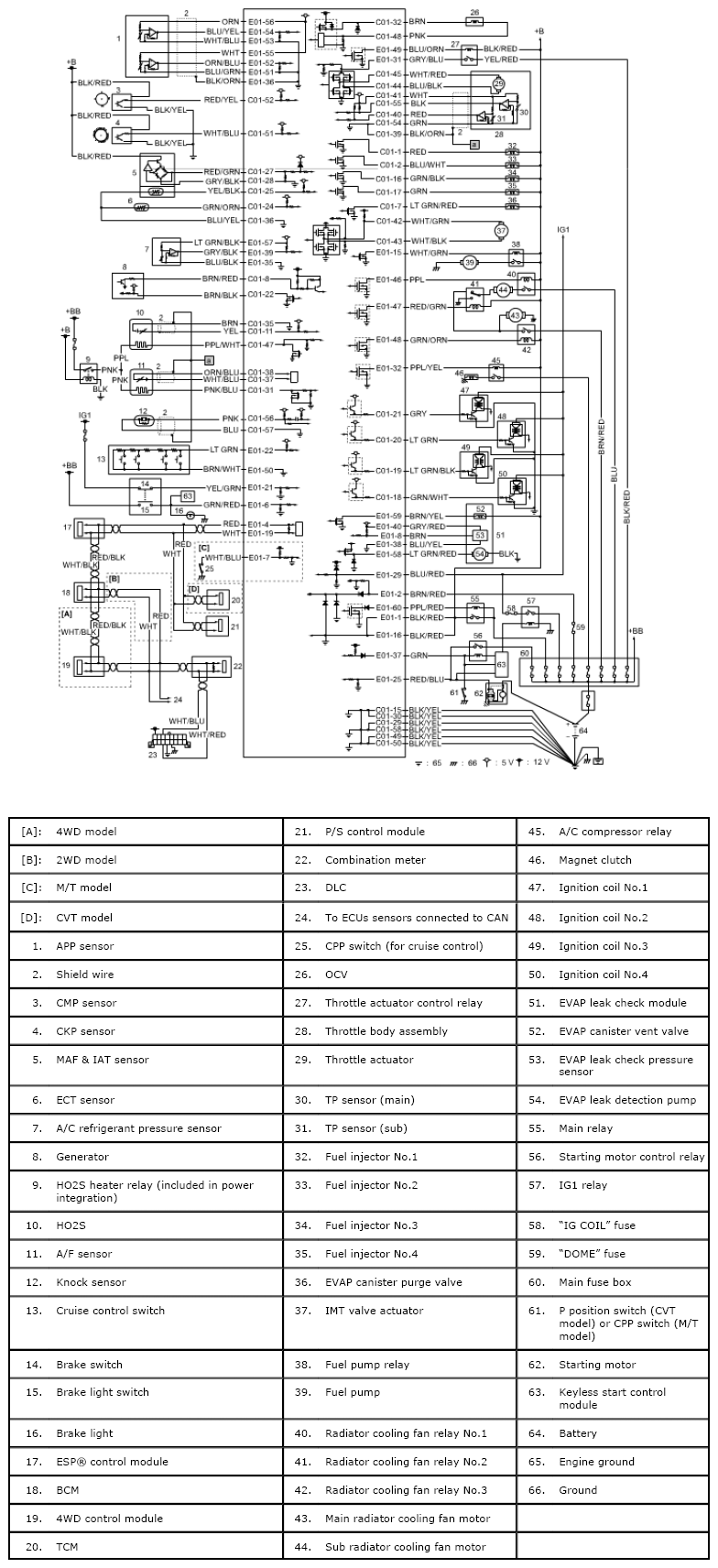

Fig 1: Engine Control System Circuit Diagram

G06526421

Courtesy of SUZUKI OF AMERICA CORP.
