P/S Pump Components

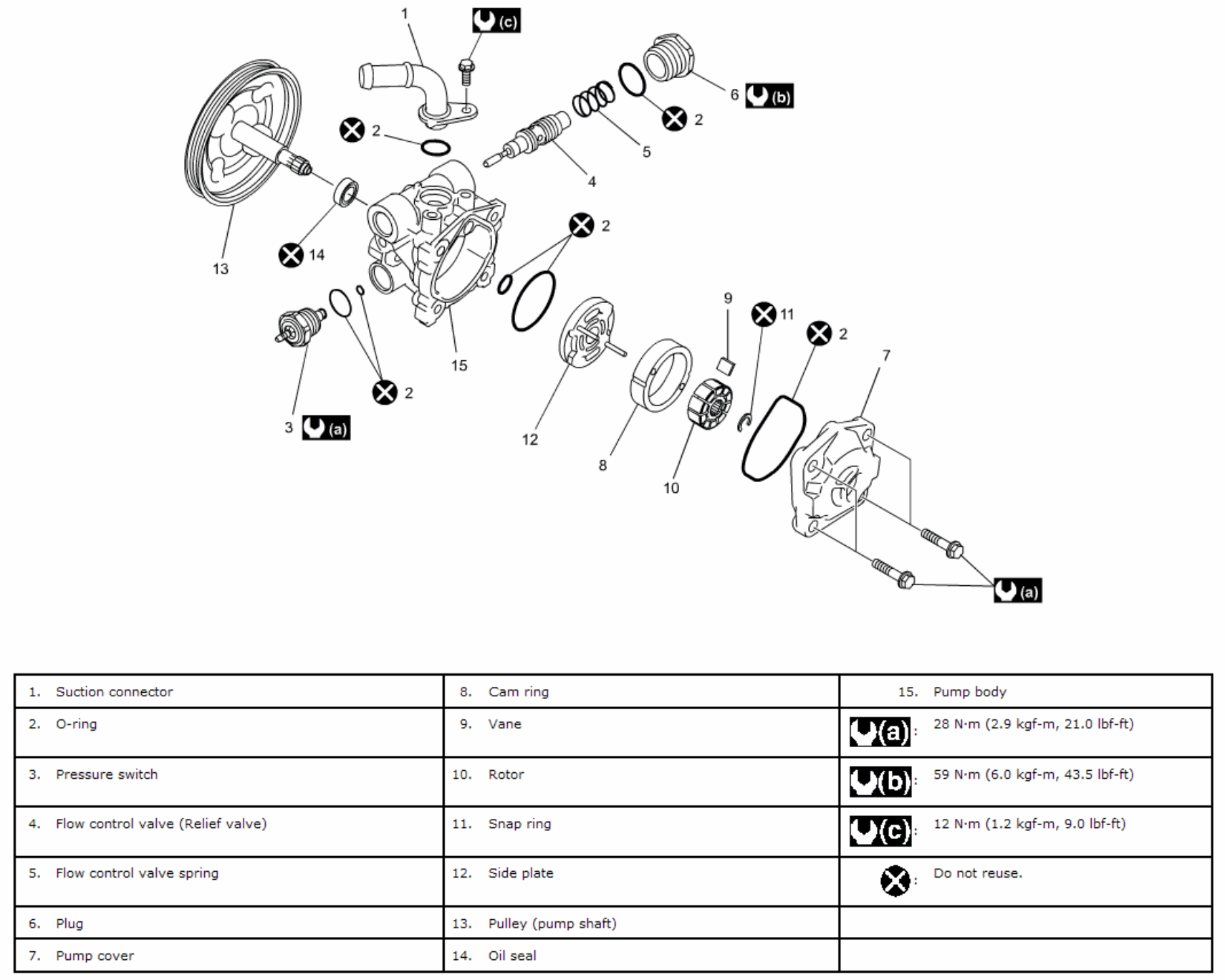

Fig 1: P/S Pump Replacement Components With Torque Specifications

G00518900

Courtesy of SUZUKI OF AMERICA CORP.
