P/S Hose/Pipe Components

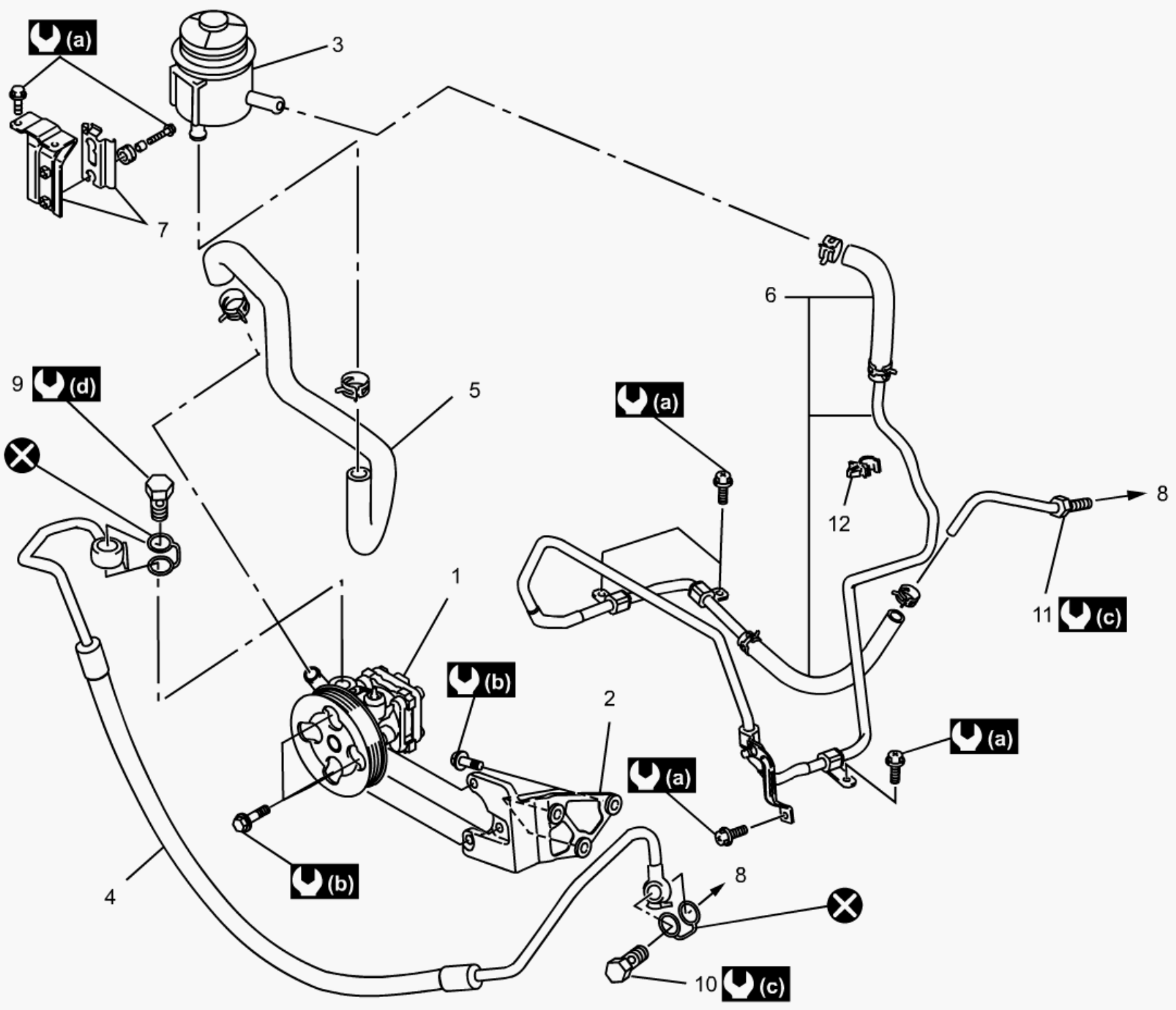

Fig 1: P/S Hose/Pipe Replacement Components With Torque Specifications (1 Of 2)
G00518897Courtesy of SUZUKI OF AMERICA CORP.

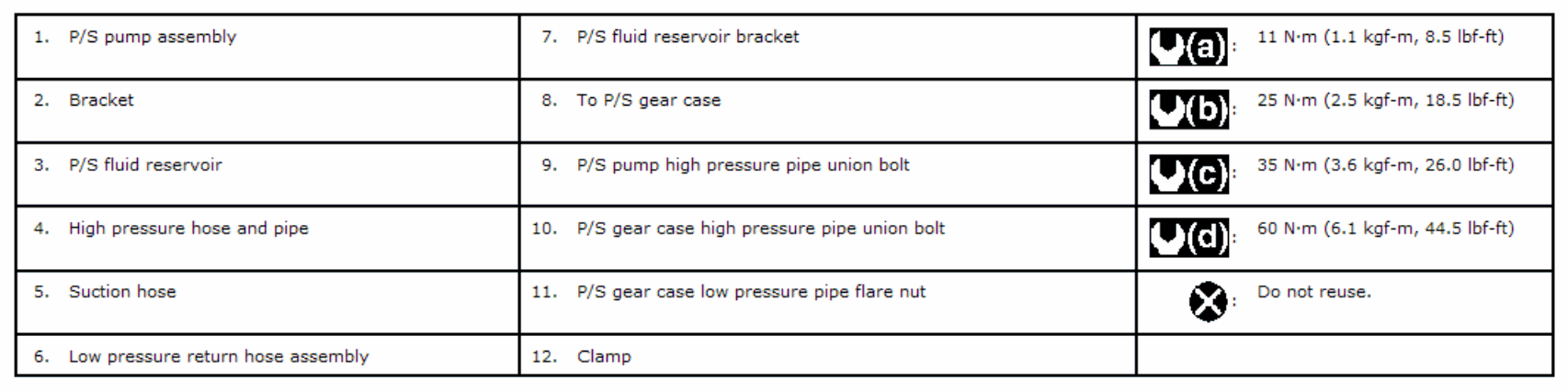

Fig 2: P/S Hose/Pipe Replacement Components With Torque Specifications (2 Of 2)
G00518898Courtesy of SUZUKI OF AMERICA CORP.
