Suzuki
>>
2011
>>
Grand Vitara Base
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering
>>
Power Assisted Steering System
>>
Repair Instructions
>>
P/S Gear Case Assembly Components
P/S Gear Case Assembly Components

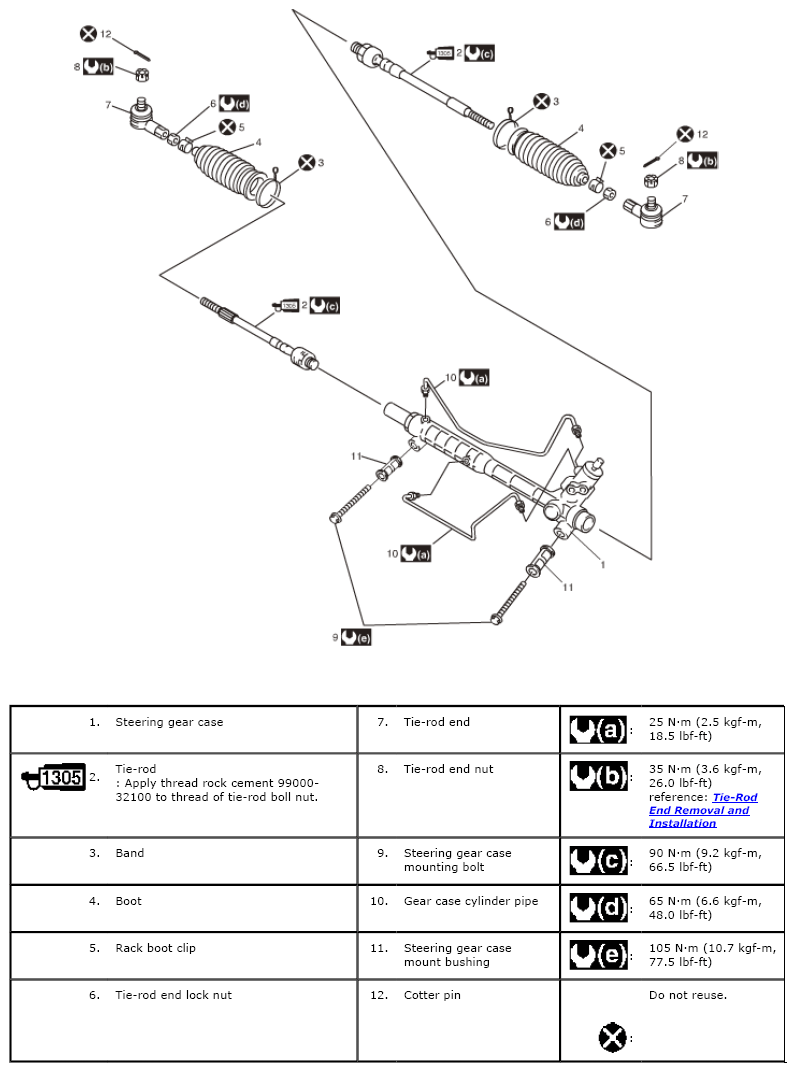

Fig 1: P/S Gear Case Assembly Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
