P/S Fluid Level Check

Reference: P/S FLUID CHANGE

With engine stopped, check fluid level indicated on P/S fluid reservoir, which should be between "UPPER" and "LOWER" marks. If it is lower than "LOWER" mark, fill fluid up to "UPPER" mark.

NOTE:

Be sure to use an specified power steering fluid.
Fluid level should be checked when fluid is cool.

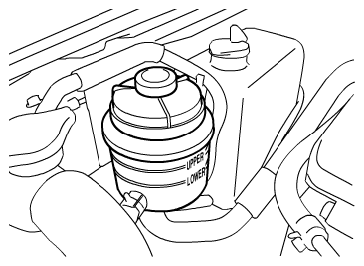

Fig 1: Identifying Fluid Level (Upper And Lower Marks)
Courtesy of SUZUKI OF AMERICA CORP.
