Engine and Emission Control System Diagram
NOTE:
For identification of each cylinder, refer to
PRECAUTIONS FOR IDENTIFICATION OF CYLINDER:J24B
.

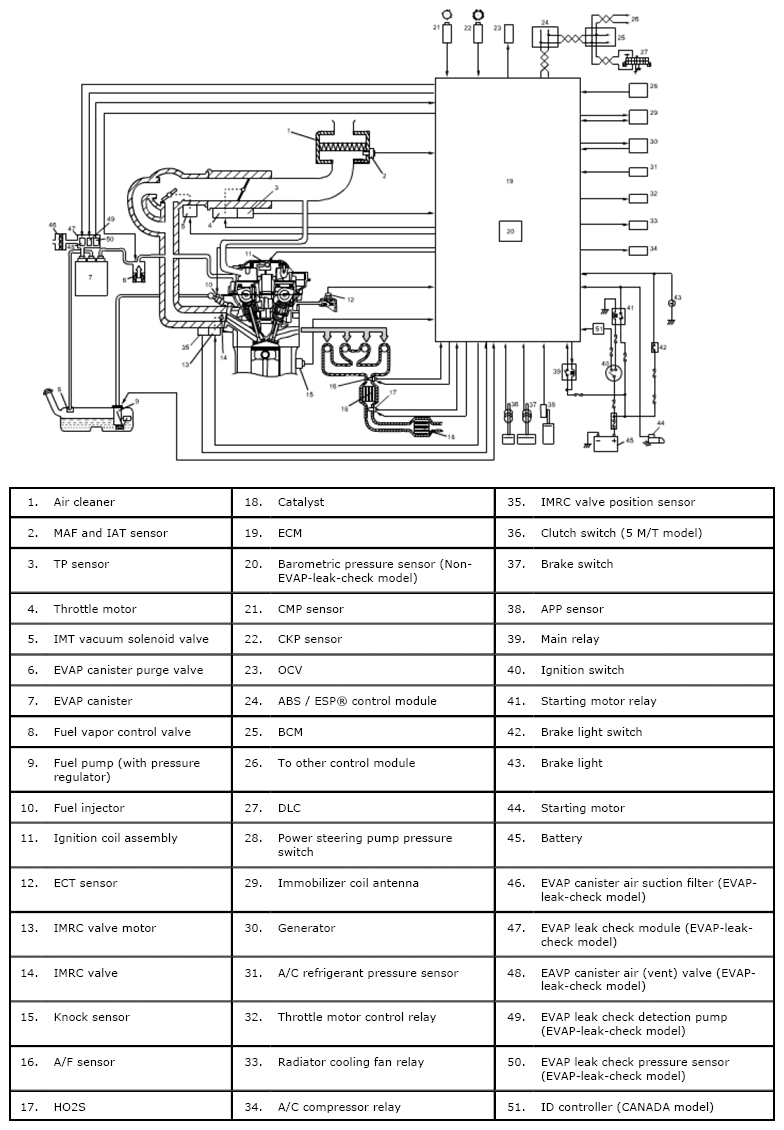

Fig 1: Engine And Emission Control System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
