DTC P2122: Throttle / Pedal Position Sensor / Switch "D" Circuit Low Input; P2123: Throttle / Pedal Position Sensor / Switch "D" Circuit High Input: Wiring Diagram

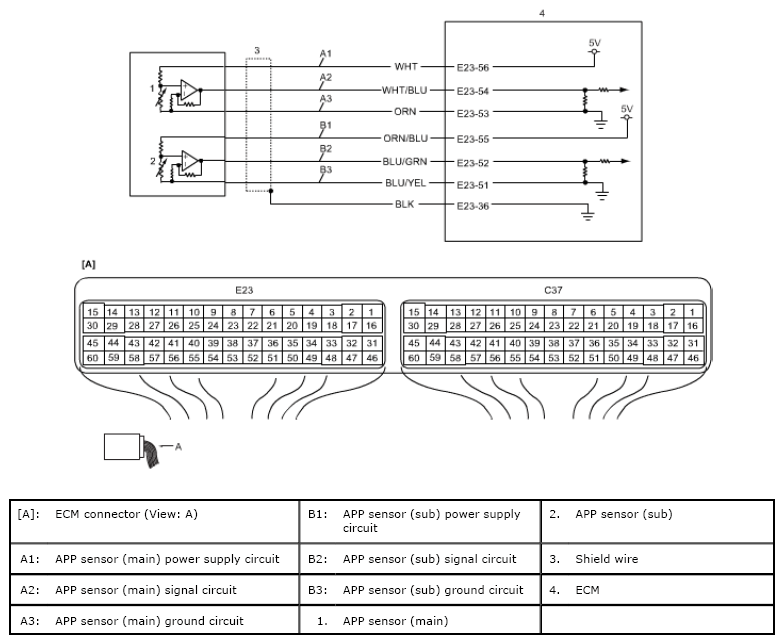

Fig 1: Throttle/Pedal Position Sensor/Switch - Wiring Diagram
G06492372Courtesy of SUZUKI OF AMERICA CORP.
