Ignition Coil Assembly Removal and Installation: Removal

  1. Disconnect negative (-) cable from battery.
  2. Remove engine cover.
  3. Disconnect ignition coil connectors (1).
  4. Remove ignition coil assembly (2).

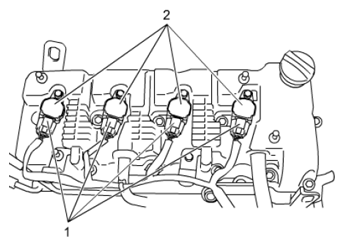

    Fig 1: Identifying Ignition Coil Assembly And Ignition Coil Assembly
    G06493515Courtesy of SUZUKI OF AMERICA CORP.
