Exhaust System Components
Exhaust System Components

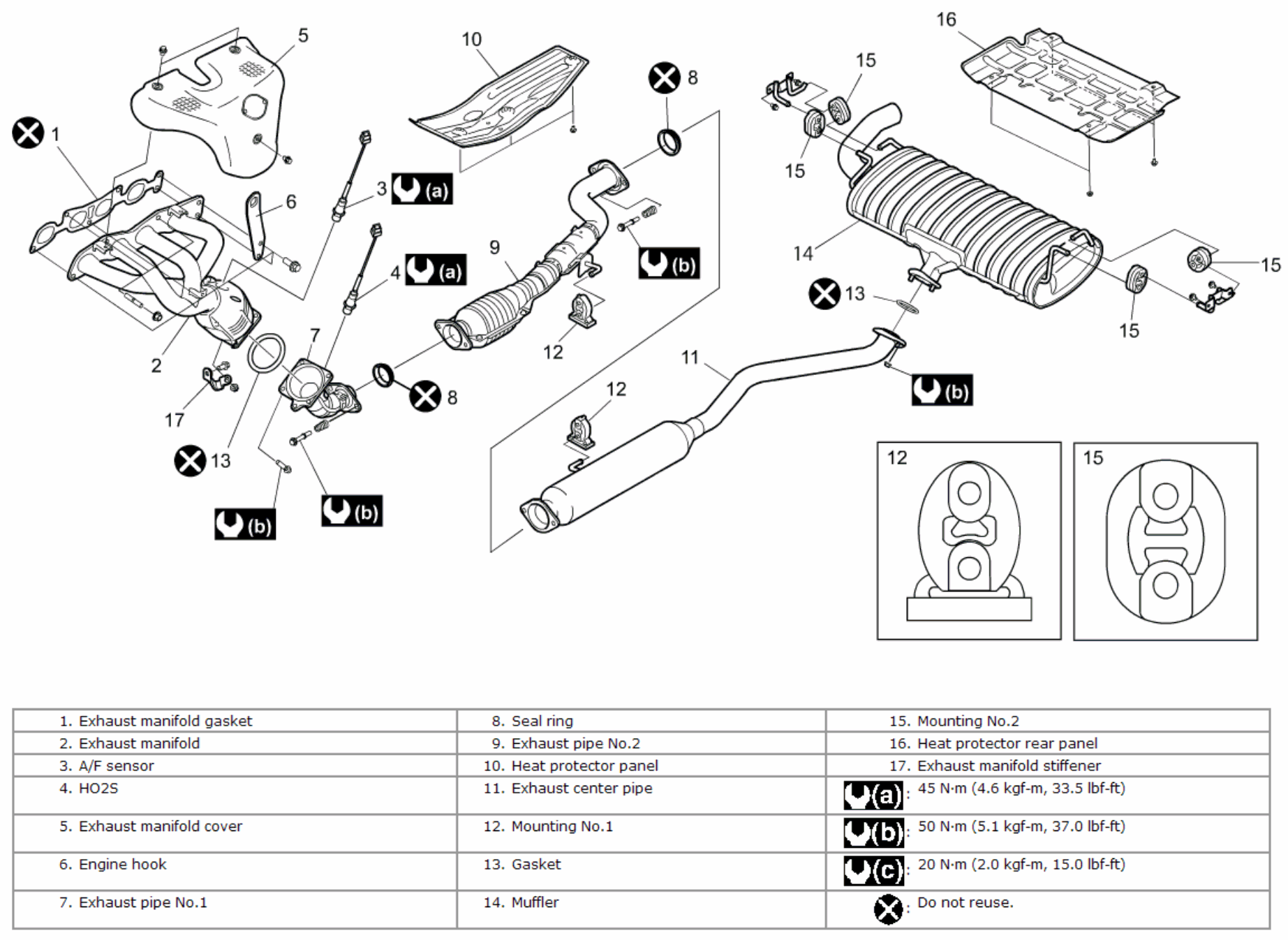

Fig 1: Exhaust System Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
