Suzuki
>>
2011
>>
Grand Vitara Base
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Wiring Systems
>>
Reassembling Note for Wiring Harness
>>
Around Main Floor
>>
Front Part
Front Part

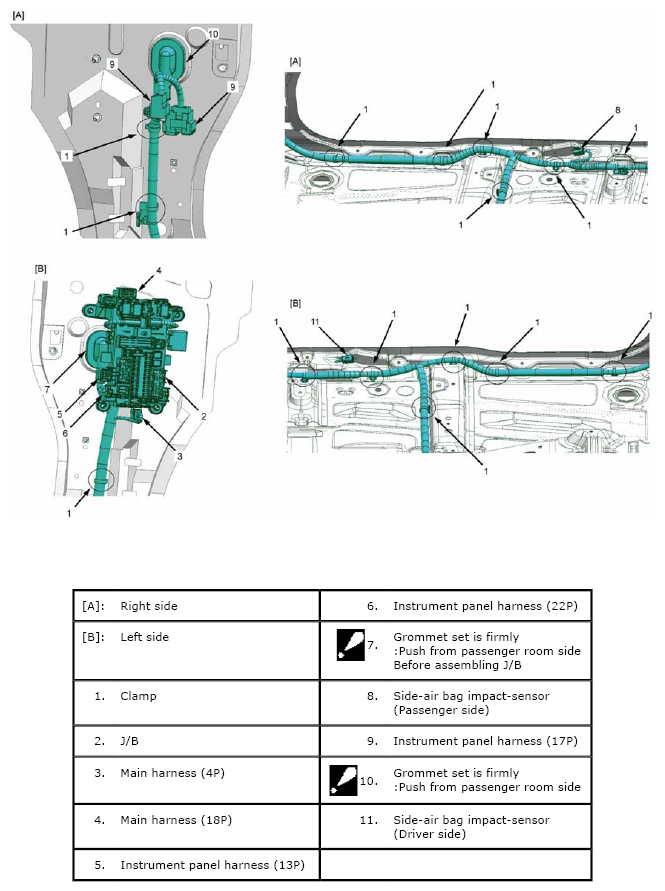

Fig 1: Instrument Panel Harness (Dash Side Panel) With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.

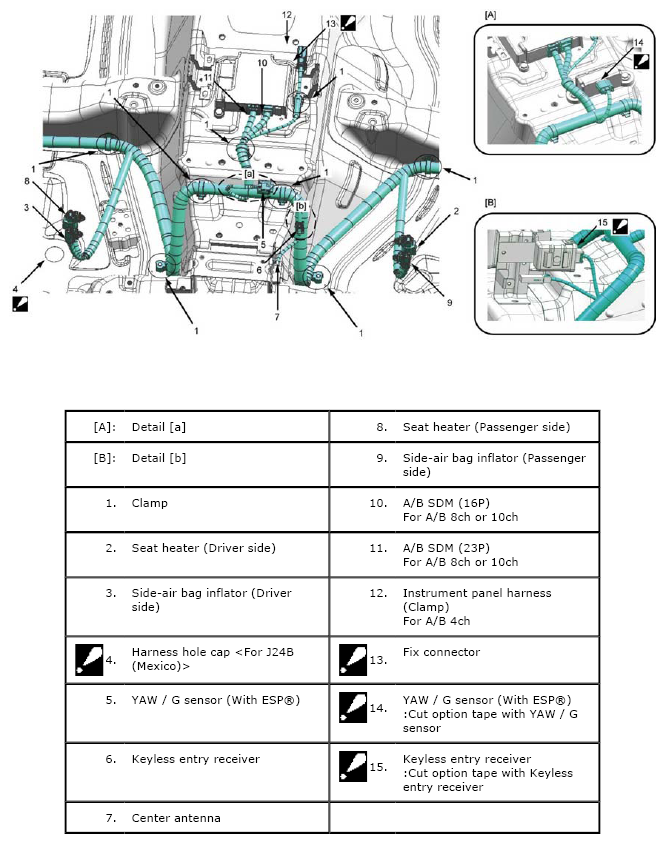

Fig 2: Identifying Floor Harness - Center
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
