Rear End Door Window Components
Rear End Door Window Components

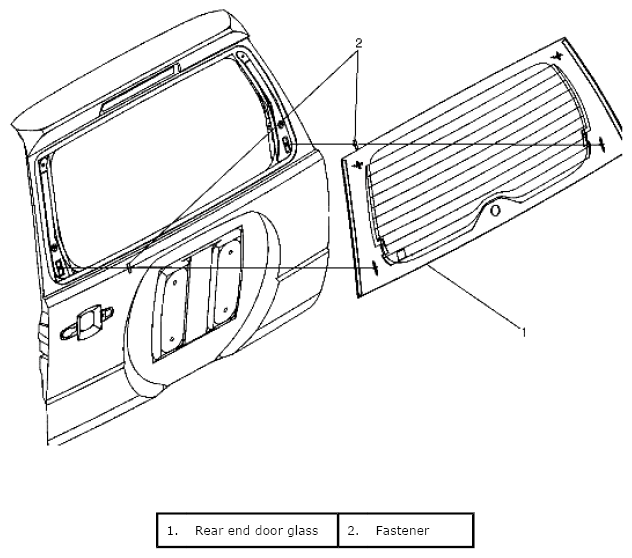

Fig 1: Identifying Rear End Door Window Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
