Power Window Sub Switch Inspection

1. Remove front and/or rear door trim from door panel, refer to Step 1) to 3) of FRONT DOOR GLASS REMOVAL AND INSTALLATION  and/or REAR DOOR GLASS REMOVAL AND INSTALLATION .
2. Remove power window sub switch from door trim.
3. Check for continuity between terminals at each switch condition.

If check result is not as specified, replace switch.

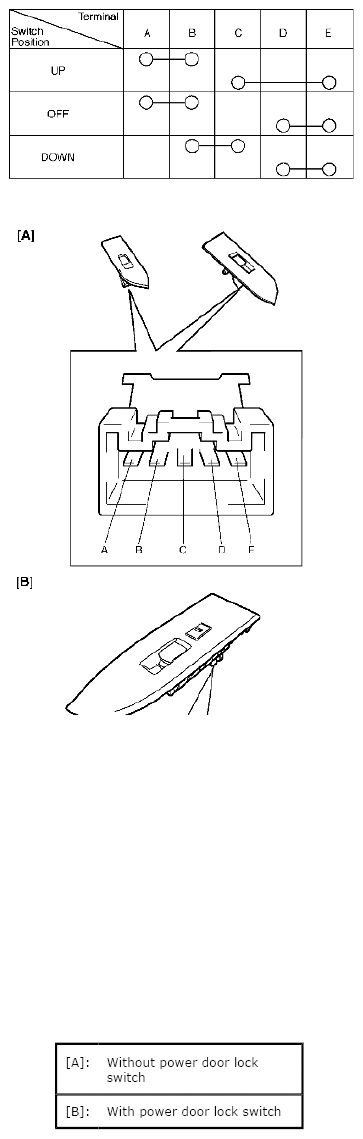

Fig 1: Inspecting Power Window Sub Switch

Courtesy of SUZUKI OF AMERICA CORP.
