Switch for driver side window
- Remove driver side door trim referring to step 1) to 3) of FRONT DOOR GLASS REMOVAL AND INSTALLATION .
- Remove power window main switch from door trim.

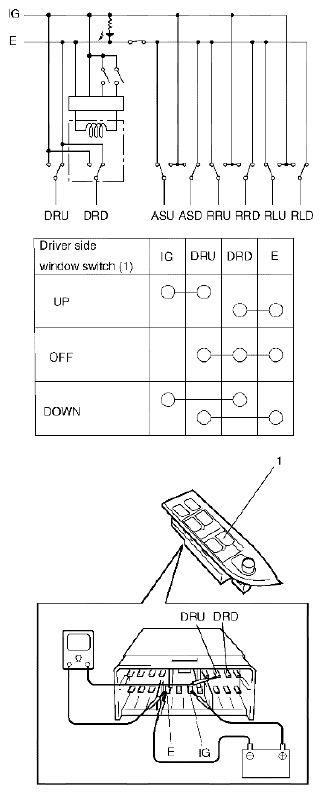

- Connect 12 V battery positive (+) terminal to terminal "IG" of power window main switch and its negative (-) terminal to terminal "E" of power window main switch.
- Check for continuity between terminals as shown below.
If check result is not as specified, replace power window main switch.
