Keyless Start System Component Location

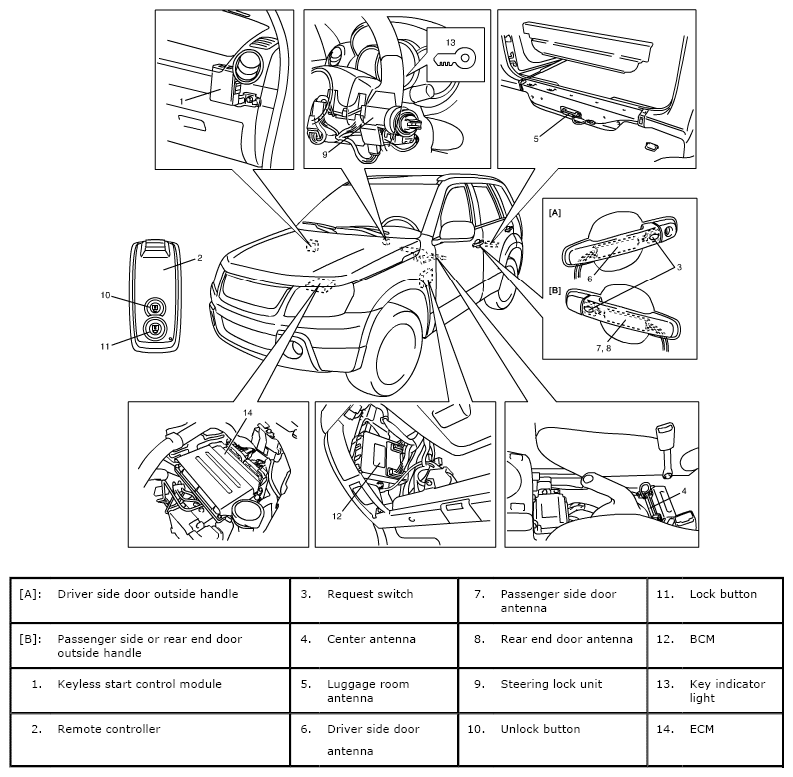

Fig 1: Identifying Keyless Start System Components

G06499928

Courtesy of SUZUKI OF AMERICA CORP.
