Steering Column: Removal and Installation: Removal

  1. Remove the spiral cable with the combination switches attached from the steering column assembly. Refer to [SPIRAL CABLE: REMOVAL AND INSTALLATION ].
  2. Remove the lower instrument panel LH. Refer to [INSTRUMENT LOWER PANEL LH: REMOVAL AND INSTALLATION ].
  3. Remove the steering column cover and ignition key finisher. Refer to [INSTRUMENT PANEL ASSEMBLY: REMOVAL AND INSTALLATION - STEERING COLUMN COVERS ].
  4. Remove the lower knee protector. Refer to [INSTRUMENT PANEL ASSEMBLY: REMOVAL AND INSTALLATION - INSTRUMENT PANEL ].
  5. Disconnect key interlock from steering column (if equipped). Refer to [KEY INTERLOCK CABLE: REMOVAL AND INSTALLATION ].
  6. Remove the lock nut and bolt from the upper joint, then separate the upper joint from the upper shaft.

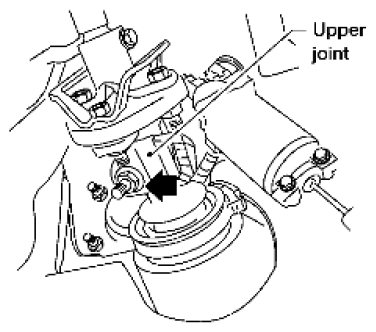

    Fig 1: Identifying Lock Nut And Bolt Of Upper Joint
    G06445829Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION:
    • Do not reuse the lock nut.
  7. Remove the three nuts and bolt from the steering column assembly, then remove the steering column assembly from the steering member.

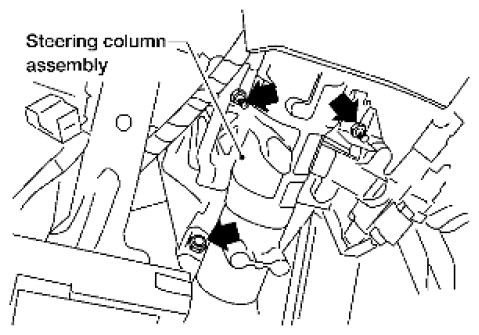

    Fig 2: Locating Nuts And Bolt Of Steering Column Assembly
    G06445830Courtesy of SUZUKI OF AMERICA CORP.
  8. Remove the bolt from the lower joint of the lower joint shaft, then remove the lower joint shaft from the vehicle.

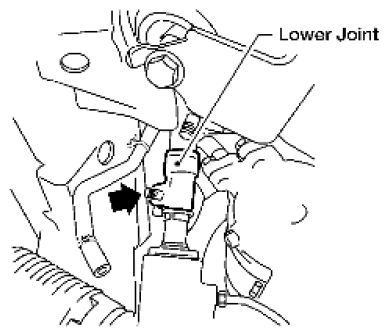

    Fig 3: Locating Bolt Of Lower Joint
    G06445831Courtesy of SUZUKI OF AMERICA CORP.
    CAUTION:
    • Do not damage the lower joint.
