Steering Column: Disassembly and Assembly: Assembly

Assembly is in the reverse order of disassembly.

CAUTION: Any time the ignition switch has been removed and installed, the keys must be reregistered in the BCM. Refer to SDT operation manual.
NOTE: Install new tamper resistant self-shear screws.

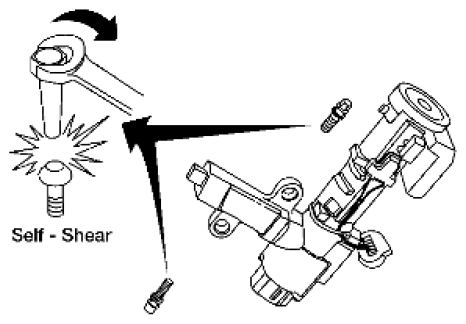

Fig 1: Installing Tamper Resistant Self-Shear Screws
G06445842Courtesy of SUZUKI OF AMERICA CORP.
