Windshield Washer Nozzle Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

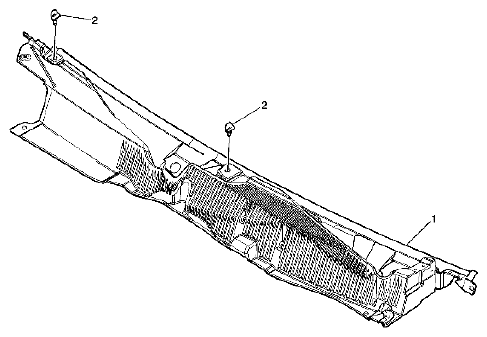

WINDSHIELD WASHER NOZZLE TABLE
| Callout | Component Name |
|---|---|
|
CAUTION:
Refer to FASTENER NOTICE
. Fastener Tightening Specifications: Refer to FASTENER TIGHTENING SPECIFICATIONS - WIPERS/WASHER SYSTEMS . |
|
| 1 | Air Inlet Grille Panel Assembly Refer to AIR INLET GRILLE PANEL REPLACEMENT . |
| 2 | Front Windshield Washer Nozzle (Qty: 2) Tip: Depress the washer nozzle tabs to disengage the nozzle from the air inlet grille. |
