Engine Control Harness (Qr25DE Models)
Engine Control Harness (Qr25DE Models)

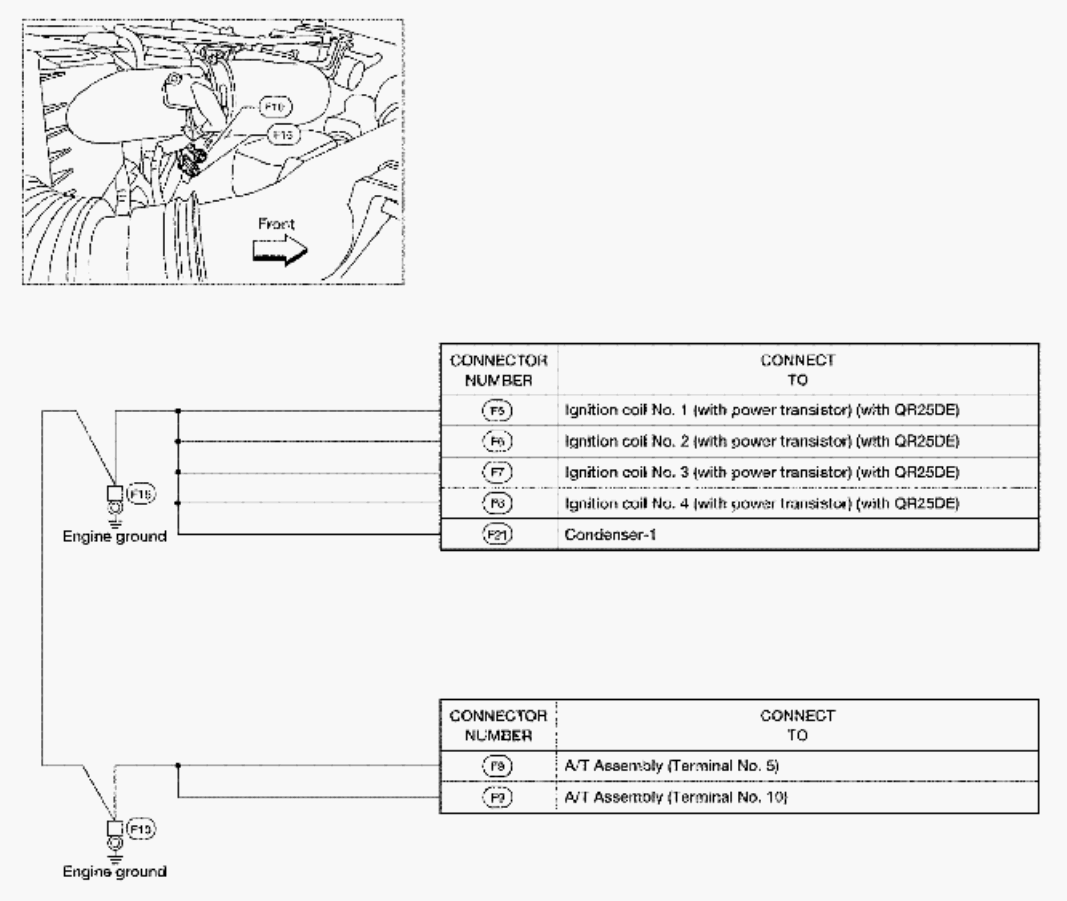

Fig 1: Identifying Ground Distribution - Engine Control Harness (QR25DE Models)
Courtesy of SUZUKI OF AMERICA CORP.
