Rear Door Lock: Component Structure
Rear Door Lock: Component Structure

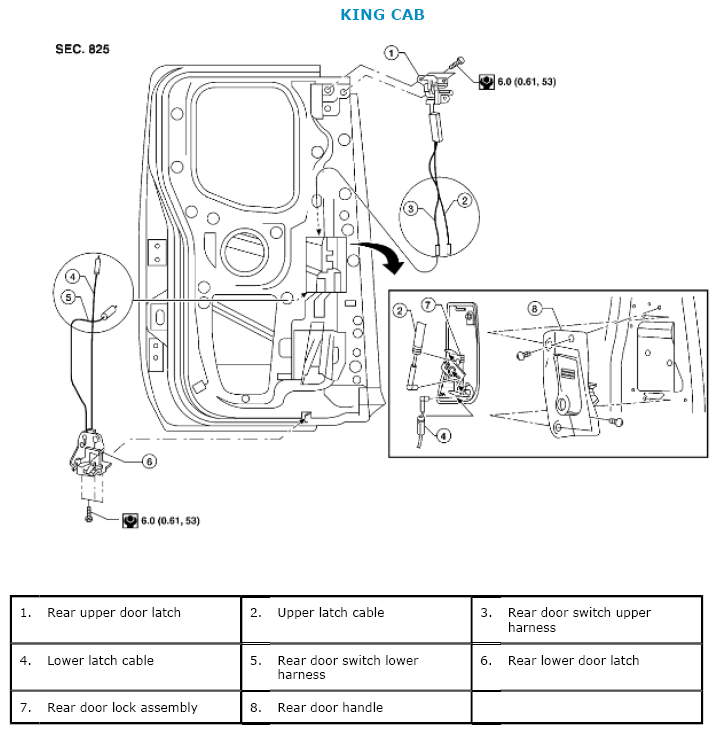

Fig 1: Identifying Rear Door Lock Component - King Cab
Courtesy of SUZUKI OF AMERICA CORP.

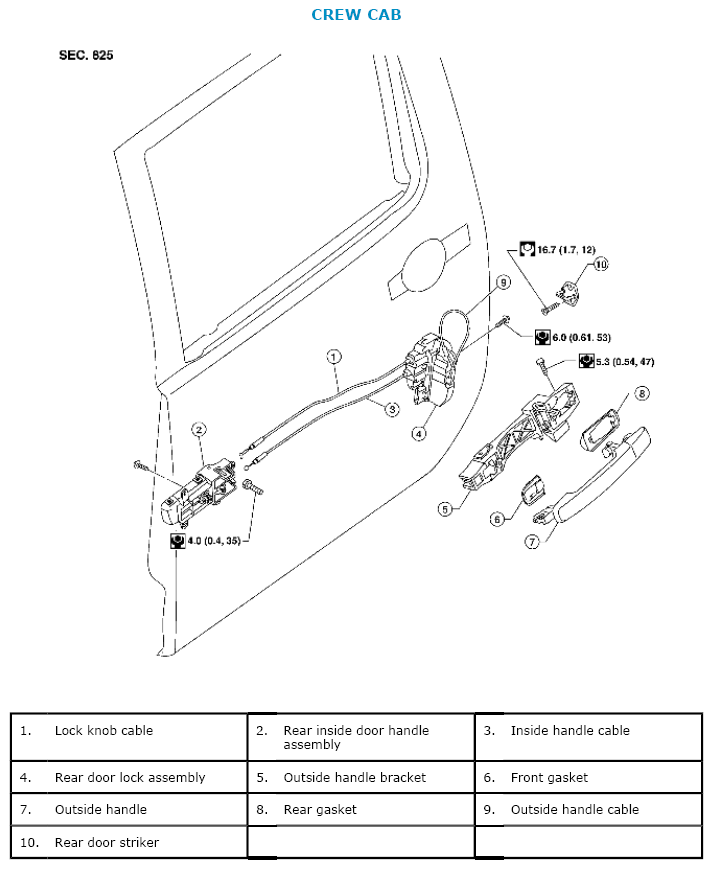

Fig 2: Identifying Rear Door Lock Component - Crew Cab
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
