Front Wiper Motor Ground Circuit Check

Regarding Wiring Diagram information, refer to [FRONT WIPER AND WASHER SYSTEM: WIRING DIAGRAM ].

Step	Action	YES	NO

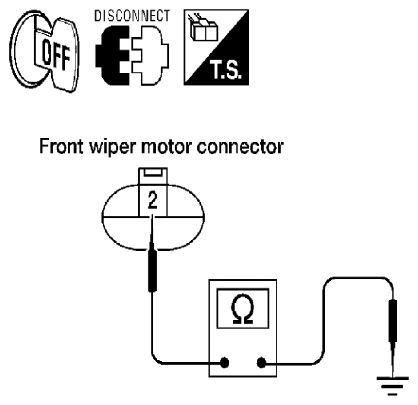

1	CHECK FRONT WIPER MOTOR (GROUND) OPEN CIRCUIT  Turn the ignition switch OFF. Courtesy of SUZUKI OF AMERICA CORP. 2. Disconnect front wiper motor. 3. Check continuity between front wiper motor harness connector and ground. Does continuity exist?	Front wiper motor ground circuit is normal.	Repair or replace harness.
