Diagnosis Procedure

Regarding Wiring Diagram information, refer to [AUDIO UNIT: WIRING DIAGRAM [BASE AUDIO] ].

Step	Action	YES	NO

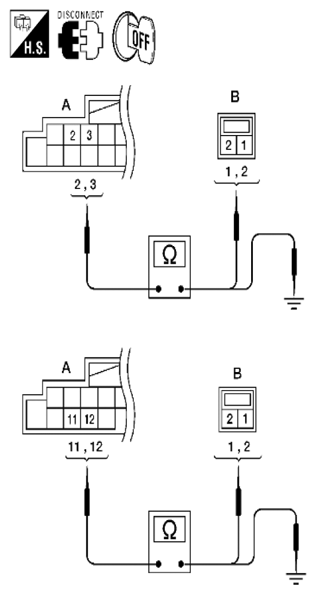

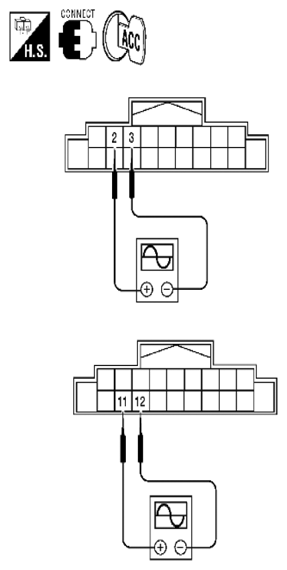

1	HARNESS CHECK  Disconnect audio unit connector M43 and suspect front tweeter connector. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 2. Check continuity between audio unit harness connector M43 (A) and suspect front tweeter harness connector (B). Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. 3. Check continuity between audio unit harness connector M43 (A) and ground. Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP. Are the continuity results as specified?	GO TO 2	Check connector housings for disconnected or loose terminals. Repair harness or connector.
