Diagnosis Procedure

Regarding Wiring Diagram information, refer to [BCM: WIRING DIAGRAM ].

DIAGNOSIS PROCEDURE

Step Action YES NO
1  CHECK INPUT 1 - 5 SYSTEM CIRCUIT FOR OPEN
  1. Turn ignition switch OFF.
G06446891G06446892Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.

  1. 2. Disconnect BCM and combination switch.

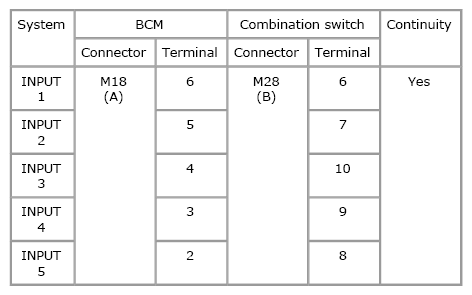

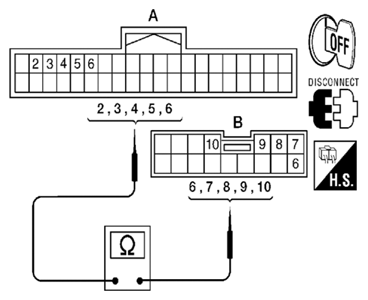

  2. 3. Check continuity between BCM harness connector and combination switch harness connector.
G06446891G06446892Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.

Does continuity exist? 		 GO TO 2 Repair or replace harness.
2  CHECK INPUT 1 - 5 SYSTEM CIRCUIT FOR SHORT
Check for continuity between BCM harness connector and ground.
Does continuity exist? 		 Repair or replace harness. GO TO 3
3  CHECK BCM OUTPUT VOLTAGE
  1. Connect BCM.
G06446893G06446894Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.

  1. 2. Turn ignition switch ON.

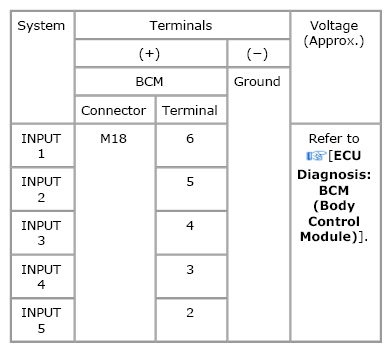

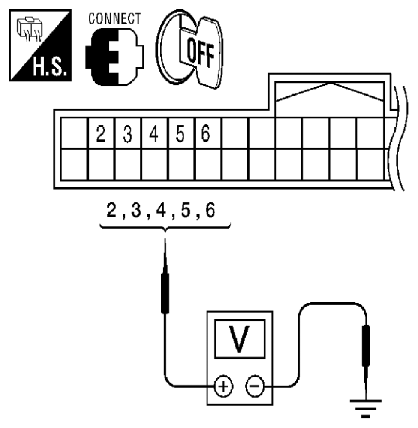

  2. 3. Check voltage between BCM harness connector and ground.
G06446893G06446894Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.

Is the measurement value normal? 		 GO TO 4 Replace BCM. Refer to [BCM (BODY CONTROL MODULE): REMOVAL AND INSTALLATION ].
4  CHECK COMBINATION SWITCH
Check combination switch. Refer to [COMBINATION SWITCH CIRCUIT CHECK ].
Is the check result normal? 		 Replace BCM. Refer to [BCM (BODY CONTROL MODULE): REMOVAL AND INSTALLATION ]. Replace the combination switch (applicable parts). Refer to [LIGHTING & TURN SIGNAL SWITCH: REMOVAL AND INSTALLATION ]
