IMT Valve Actuator Inspection

Reference: "IMT Valve Actuator Removal and Installation"

CAUTION: Be sure not to apply battery voltage to IMT valve actuator for 10 seconds or more.

Connect battery positive (+) and negative (-) terminals to IMT valve actuator (1) as shown in table below. If it does not operate as specified direction, replace IMT valve actuator.

DIAGNOSTIC INFORMATION AND PROCEDURES REFERENCE CHART

Rotative direction	a	b
clockwise	+	-
counterclockwise	-	+

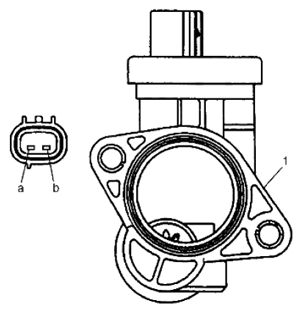

Fig 1: Checking IMT Valve Actuator

Courtesy of SUZUKI OF AMERICA CORP.
