Left Side

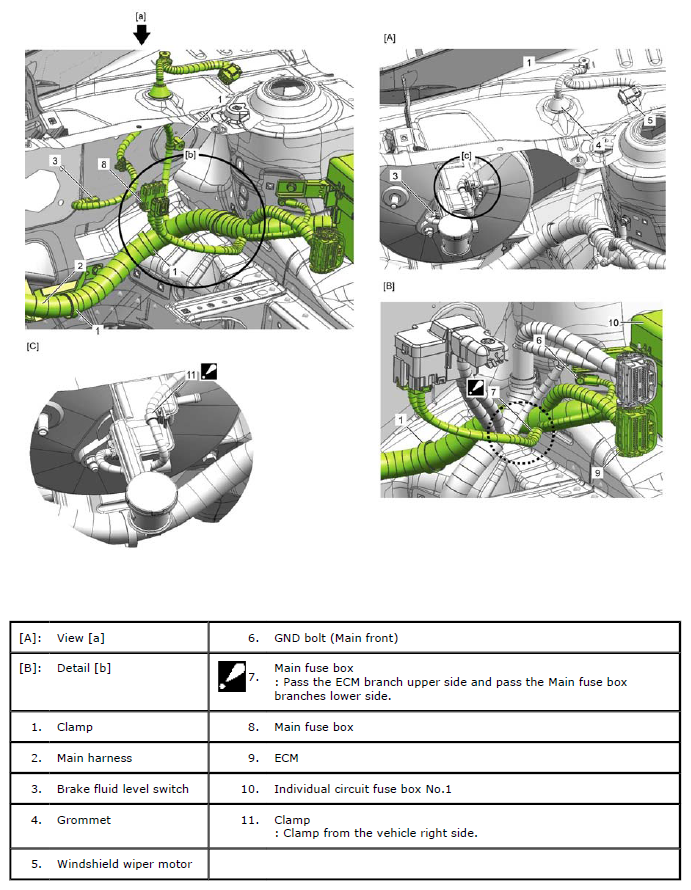

Fig 1: Identifying Around Strut Harness - Left Side

G06871306

Courtesy of SUZUKI OF AMERICA CORP.
