Differential Components
Differential Components

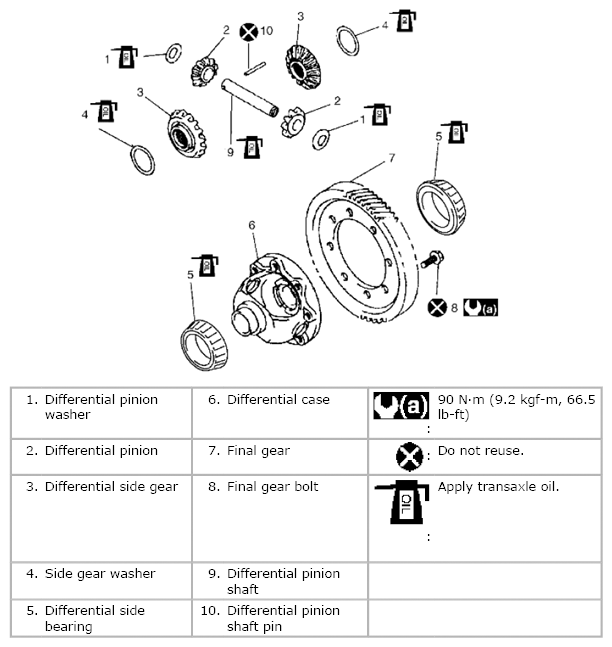

Fig 1: Identifying Differential Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
