Key Interlock Cable Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Lay interlock cable to its original cabling route.

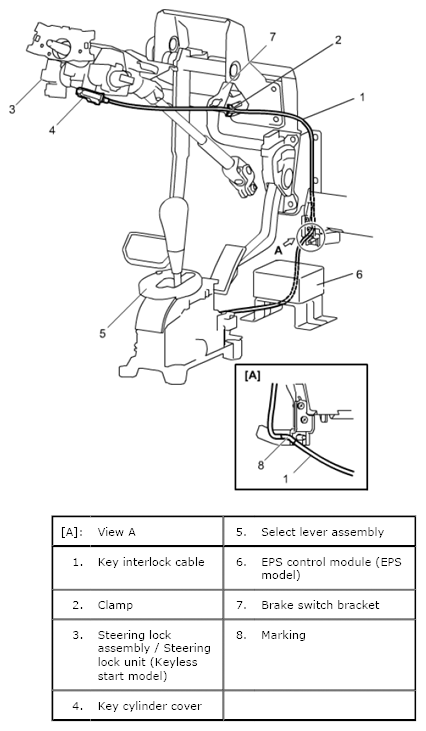

Fig 1: Identifying Interlock Cable Components
Courtesy of SUZUKI OF AMERICA CORP.
Turn ignition switch to "ACC" position.
Insert cable casing cap (1) into key cylinder cover (2) securely.

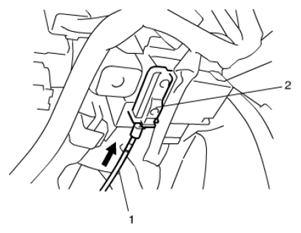

Fig 2: Inserting Cable Casing Cap Into Key Cylinder Cover
Courtesy of SUZUKI OF AMERICA CORP.
Pull out lock button (1) of selector side cable end (2).

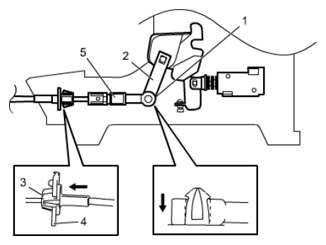

Fig 3: Pulling Out Lock Button Of Selector Side Cable End
Courtesy of SUZUKI OF AMERICA CORP.
Shift selector lever to "N" position.
Install cable casing cap (3) to selector bracket (4).
Turn ignition switch to "ACC" position and connect cable end (1) to interlock cam (2).
Drive lock button (5) in cable end until it locks cable expansion and contraction.

Fig 4: Driving Lock Button
Courtesy of SUZUKI OF AMERICA CORP.
Check key interlock system. See Brake and Key Interlock System Inspection
Install knee protector to steering column (if removed).
Install steering column cover. See STEERING WHEEL AND COLUMN COMPONENTS
Install steering column hole cover.
Enable air bag system.
- Except advanced air bag model: See ENABLING AIR BAG SYSTEM
- Advanced air bag model: See ENABLING AIR BAG SYSTEM
