CVT Assembly Components

CAUTION: Check that distance "a" is more than 17.0 mm (0.669 in.) when installing.

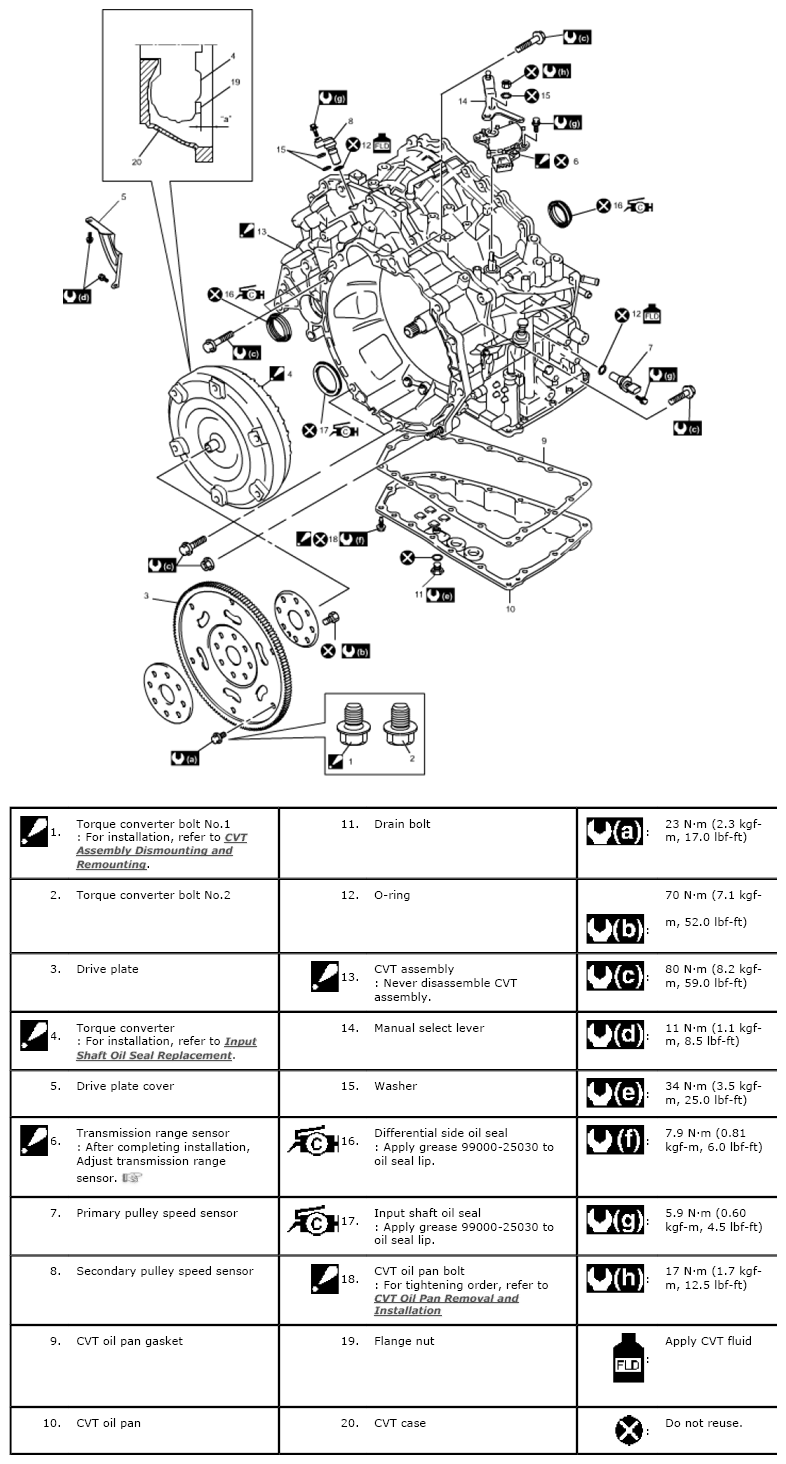

Fig 1: Torque Converter Replacement Components With Torque Specifications

Courtesy of SUZUKI OF AMERICA CORP.
