Grand Vitara Base, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle - 4AT
>>
Repair Instructions
>>
Center Support Components
Center Support Components

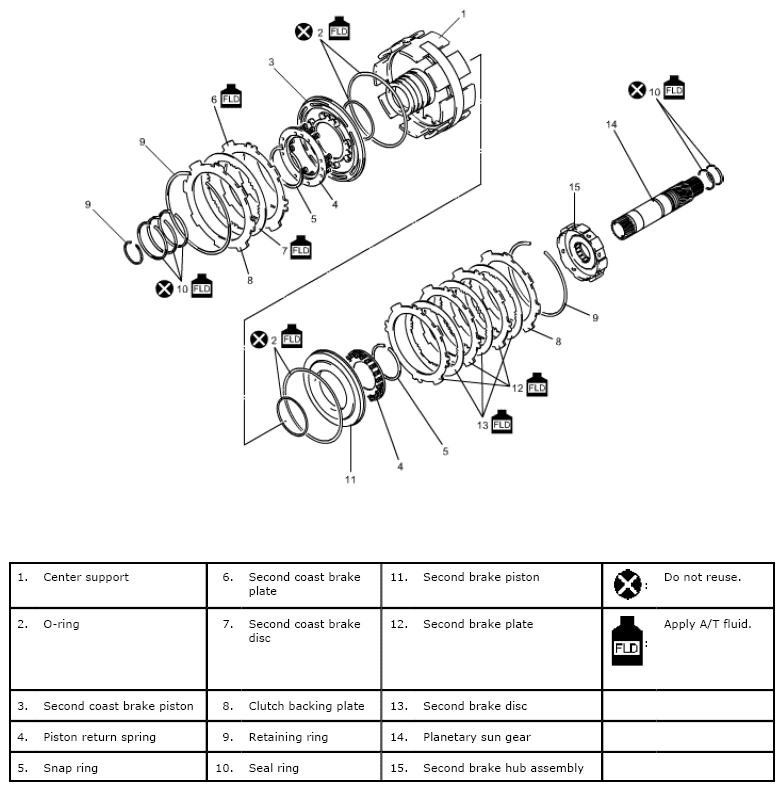

Fig 1: Identifying Center Support Components
Courtesy of SUZUKI OF AMERICA CORP.
