Electronic Shift Control Input/Output Table

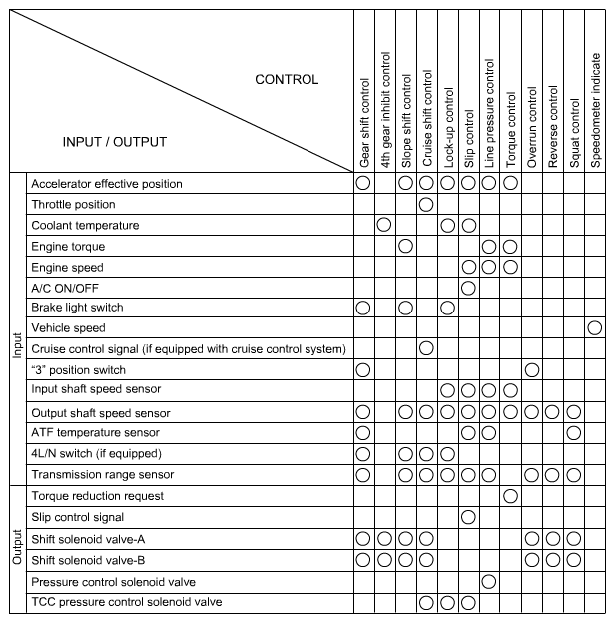

Fig 1: Electronic Shift Control Input/Output Chart

G06498539

Courtesy of SUZUKI OF AMERICA CORP.
