Electronic Shift Control System Component Location

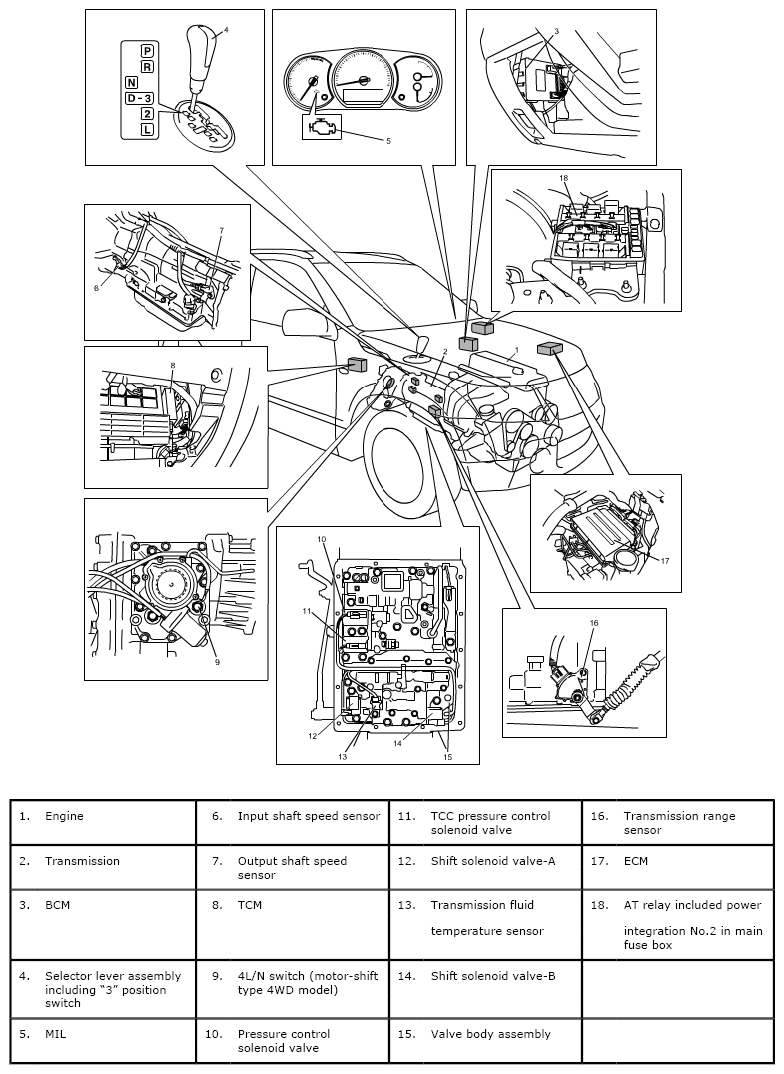

Fig 1: Identifying Electronic Shift Control System Component Location

G06498542

Courtesy of SUZUKI OF AMERICA CORP.
