Generator Removal and Installation: Installation

Reverse dismounting procedure, noting the following.

• Tighten each bolts and nuts to specified torque.

Tightening torque

"B" terminal nut a: 5 N.m (0.5 kg-m, 4.0 lb-ft)

Generator mounting bolt b: 25 N.m (2.5 kg-m, 18.5 lb-ft)

Generator pivot bolt c: 52.5 N.m (5.25 kg-m, 38.0 lb-ft)

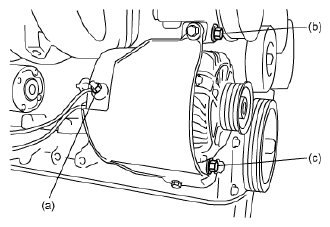

Fig 1: Identifying Generator Mounting Bolt And Generator Pivot Bolt

Courtesy of SUZUKI OF AMERICA CORP.
