SX4 LE, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Wiring Systems
>>
Reassembling Note for Wiring Harness
>>
Instrument Panel Harness
Instrument Panel Harness

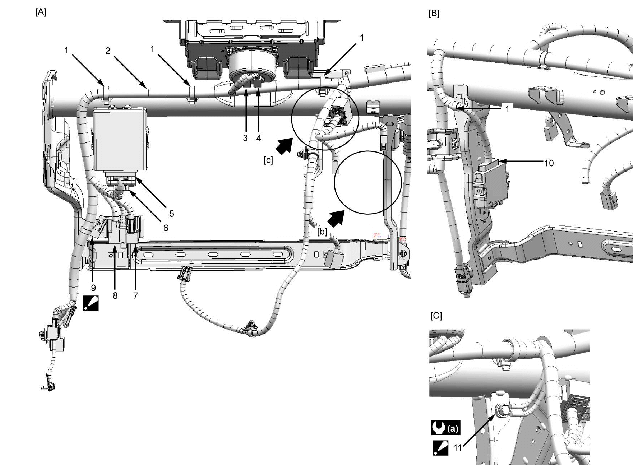

Fig 1: Instrument Panel Harness
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Instrument Panel Harness - Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
