Electronic Shift Control Input/Output Table

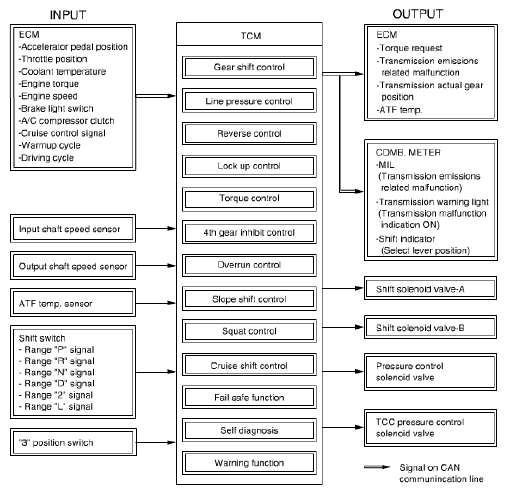

Fig 1: Identifying Electronic Shift Control Input/Output Flow Diagram

G04847717

Courtesy of SUZUKI OF AMERICA CORP.
